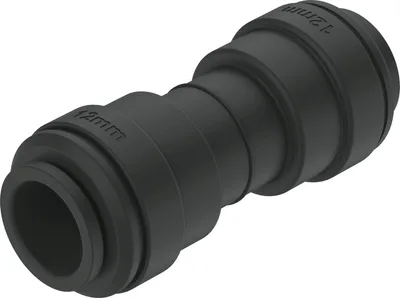

Photo may not represent actual item. Refer to name and product specs for all details.

Festo CQ-28

Push-in connector. For pipes PQ-PA, PQ-AL and tubing PAN and PUN. Operating media: compressed air, vacuum, liquid media. POM. Straight design, L-shaped, T-shaped

FestoMFR # CQ-28SKU # CEY-937FC7821E95

Nominal size24.9

Mounting positionAny

Size of pack1

DesignPush-pull principle

Temperature-dependent operating pressure-0.95, 10

Corrosion resistance class CRC2 - Moderate corrosion stress

Have questions?Chat on WhatsApp

About This Product

Push-in connector. For pipes PQ-PA, PQ-AL and tubing PAN and PUN. Operating media: compressed air, vacuum, liquid media. POM. Straight design, L-shaped, T-shaped

Festo CQ-28

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size24.9

Mounting positionAny

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.95, 7

Temperature-dependent operating pressure-0.95, 10

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature-25, 70

Product weight90

Pneumatic connection, port 1For pipe/tubing outside diameter of 28 mm

Pneumatic connection, port 2For pipe/tubing outside diameter of 28 mm

Note on materialsRoHS compliant

Material housingPOM

Material release ringPOM

Material tubing clamp componentHigh-alloy stainless steel

Accessories 4

Genuine accessories that can be used with the Festo CQ-28 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PQ-AL-28X1,5X3000	Pipe · Connection accessories
PQ-PA-28X2,5X3000	Plastic pipe · Connection accessories
CQC-28H	Blanking plug · Connection accessories
PAN-R-28X2,5-SW	Plastic tubing · Tubes
