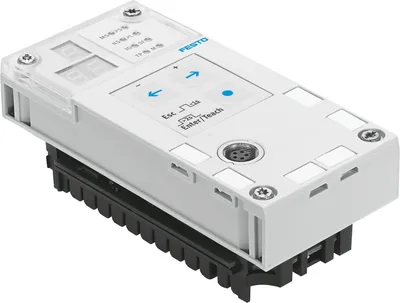

FESTO CPX-CMPX-C-1-H1

End position controller. Electronic end-position control for pneumatic drives. Soft Stop for smooth braking and quick acceleration. Use with all fieldbuses/Ethernet available on CPX. Easy commissioning with Festo plug plug & work. Approx. 30% shorter travel times and 30% less air consumption than with comparable standard pneumatics. End positions with 2 additional, freely positionable intermediate positions. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # CPX-CMPX-C-1-H1SKU # CEY-937FC781EB3C

Dimensions (W x L x H)50 mm x 107 mm x 55 mm

Max. number of modules10

Display7-segment display

Operator controls3 keys

Operational voltage range DC18, 30

Load voltage range DC20, 30

Have questions?Chat on WhatsApp

About This Product

FESTO CPX-CMPX-C-1-H1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 55 mm

DiagnosisModule-oriented diagnostics, Via local 7-segment display

Max. number of modules10

Display7-segment display

Operator controls3 keys

Operational voltage range DC18, 30

Load voltage range DC20, 30

Nominal load voltage DC24

Nominal operating voltage DC24

Current consumption at nominal operating voltage80

Permissible load current2.5

Shock resistance to DIN/IEC 68 Parts 2-29Tested to severity level 2

LABS (PWIS) conformityVDMA24364-B2-L

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, To IEC 60529

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Ambient temperature-5, 50

Product weight140

Axes per string1

Number of axis strings1

Electrical connection control interfaceSocket, M9, 5-pin

Cable length30

Control-InterfaceDigital, CAN bus with Festo protocol, Integrated terminating resistor

Material housingReinforced PA

Accessories 12

Genuine accessories that can be used with the FESTO CPX-CMPX-C-1-H1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
IBS-6X10	Inscription label · General accessories
CPX-ZA-1-E	Tie rod · Mounting accessories
KVI-CP-3-WS-WD-0,25	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-0,5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-2	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-8	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-2	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-5	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-8	Connecting cable · Connecting cables
KVI-CP-3-SSD	Connecting component · Electrical accessories
CPX-M-M3X22-S-4X	Screw · Mounting accessories
