How can I get a price quote for FESTO CPX-CMAX-C1-1?

You can request a fast quote for FESTO CPX-CMAX-C1-1 from Yılsa Engineering. Reference part number CEY-937FC781EB3B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CPX-CMAX-C1-1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CPX-CMAX-C1-1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CPX-CMAX-C1-1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

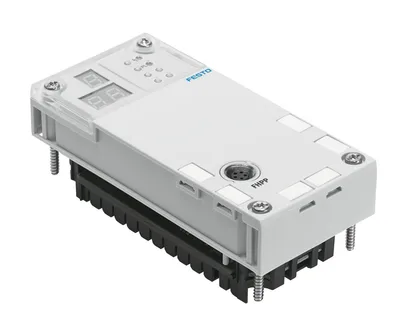

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO CPX-CMAX-C1-1

Axis controller. Axis controller as CPX module, supports pneumatic drives with piston rod, rodless drives and semi-rotary drives. Force and position control. Use with all fieldbuses/Ethernet and controllers CEC available on CPX. Easy commissioning thanks to auto identification function. Rapid commissioning and comprehensive diagnostics with FCT configuration software (Festo Configuration Tool). Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # CPX-CMAX-C1-1SKU # CEY-937FC781EB3B

Dimensions (W x L x H)50 mm x 107 mm x 55 mm

Modes of operationRecord mode, Direct mode

Max. number of modules8

Regulator functionForce control

Display7-segment display

Operational voltage range DC18, 30

Have questions?Chat on WhatsApp

About This Product

FESTO CPX-CMAX-C1-1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 55 mm

Modes of operationRecord mode, Direct mode

DiagnosisModule-oriented diagnostics, Via local 7-segment display

Max. number of modules8

Regulator functionForce control

Display7-segment display

Status displaysPower Load, Display/Error Axis X, MC Axis X, Module status

Fuse protection (short circuit)Internal electronic fuse for operating voltage, Internal electronic fuse for load voltage

Operational voltage range DC18, 30

Load voltage range DC20, 30

Nominal load voltage DC24

Nominal operating voltage DC24

Power failure bridging10

Current consumption at nominal operating voltage200

Permissible load current2.5

LABS (PWIS) conformityVDMA24364-B2-L

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, To IEC 60529

Ambient temperature-5, 50

Product weight240

Axes per string1

Number of axis strings1

Max. cable length30 M

Electrical connection control interfaceSocket, M9, 5-pin

Control-InterfaceDigital, CAN bus with Festo protocol, Integrated terminating resistor

Note on materialsRoHS compliant

Material housingReinforced PA

Accessories 9

Genuine accessories that can be used with the FESTO CPX-CMAX-C1-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KVI-CP-3-WS-WD-0,25	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-0,5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-2	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-8	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-2	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-5	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-8	Connecting cable · Connecting cables
KVI-CP-3-SSD	Connecting component · Electrical accessories
