How can I get a price quote for FESTO CPVSC1-M1H-M-P-Q3?

You can request a fast quote for FESTO CPVSC1-M1H-M-P-Q3 from Yılsa Engineering. Reference part number CEY-937FC78210AC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CPVSC1-M1H-M-P-Q3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CPVSC1-M1H-M-P-Q3 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CPVSC1-M1H-M-P-Q3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

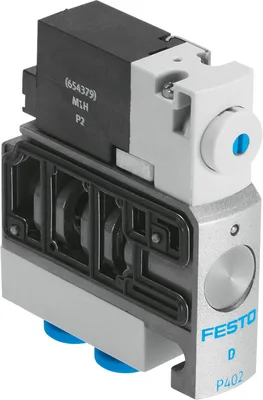

FESTO CPVSC1-M1H-M-P-Q3

Solenoid valve

FESTOMFR # CPVSC1-M1H-M-P-Q3SKU # CEY-937FC78210AC

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size10

pneumatic working portQS-3

Operating voltage22 V DC

Operating pressure-0.09, 0.7

Have questions?Chat on WhatsApp

About This Product

FESTO CPVSC1-M1H-M-P-Q3 (Solenoid valve) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO CPVSC1-M1H-M-P-Q3 — price, stock availability and technical specifications.

FESTO CPVSC1-M1H-M-P-Q3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)170

pneumatic working portQS-3

Operating voltage22 V DC

Operating pressure-0.09, 0.7

Operating pressure-0.9, 7

DesignPiston gate valve

Type of resetPneumatic spring

Degree of protectionIP40

Exhaust-air functionCannot be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00991682

lapOverlap

Pilot pressure0.3, 0.7

Pilot pressure3, 7

Switching time off10

Switching time on10

Max. positive test pulse with 0 signal400

Max. negative test pulse with 1 signal200

Characteristic coil data22 V DC: 1.0 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-5, 50

Product weight30.5

Electrical connectionPlug

Type of mountingWith through-hole

Pilot exhaust port 82/84Common line

Pneumatic connection, port 1Common line

Pneumatic connection, port 2QS-3

Pneumatic connection 3/5 combinedCommon line

Pneumatic connection, port 4QS-3

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 21

Genuine accessories that can be used with the FESTO CPVSC1-M1H-M-P-Q3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-3X0,5-SI	Plastic tubing · Tubing
PUN-3X0,5-BL	Plastic tubing · Tubing
PUN-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-RT	Plastic tubing · Tubing
PUN-3X0,5-GE	Plastic tubing · Tubing
PUN-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-NT	Plastic tubing · Tubing
PUN-H-3X0,5-BL	Plastic tubing · Tubing
PUN-H-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-SI-500	Plastic tubing · Tubing
PUN-3X0,5-BL-500	Plastic tubing · Tubing
PUN-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-BL-500	Plastic tubing · Tubing
PUN-H-3X0,5-NT-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI	Plastic tubing · Tubing
PUN-H-3X0,5-RT	Plastic tubing · Tubing
PUN-H-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-GE	Plastic tubing · Tubing
PFAN-3X0,5-NT	Plastic tubing · Tubing
