How can I get a price quote for FESTO CPE10-PRS-1/4-6?

You can request a fast quote for FESTO CPE10-PRS-1/4-6 from Yılsa Engineering. Reference part number CEY-937FC7828688. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CPE10-PRS-1/4-6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CPE10-PRS-1/4-6 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CPE10-PRS-1/4-6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

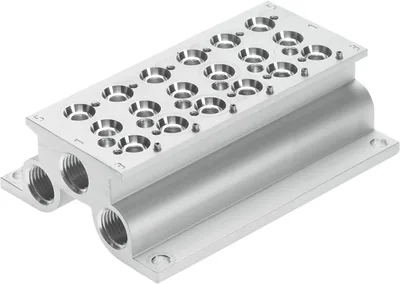

FESTO CPE10-PRS-1/4-6

Manifold block

FESTOMFR # CPE10-PRS-1/4-6SKU # CEY-937FC7828688

Grid dimension16

Mounting positionAny

Max. number of valve positions6

Max. number of pressure zones2

Burst pressure5

Burst pressure50

Have questions?Chat on WhatsApp

About This Product

FESTO CPE10-PRS-1/4-6 (Manifold block) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO CPE10-PRS-1/4-6 — price, stock availability and technical specifications.

FESTO CPE10-PRS-1/4-6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Grid dimension16

Mounting positionAny

Max. number of valve positions6

Max. number of pressure zones2

Burst pressure5

Burst pressure50

Burst pressure725

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Ambient temperature-5, 50

Max. tightening torque for valve mounting1.2

Product weight323

Type of mounting in-line valve manifoldWith through-hole

Mounting method for valveWith female thread

Pneumatic connection, port 1G1/4

Pneumatic connection, port 3G1/4

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material manifold railWrought aluminium alloy

Accessories 37

Genuine accessories that can be used with the FESTO CPE10-PRS-1/4-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-1/4-6-100	Push-in fitting · Push-in fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-1/4-12-20	Push-in fitting · Push-in fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-6-I-100	Push-in fitting · Push-in fittings
QS-1/4-6	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-6-I	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-1/4-12	Push-in fitting · Push-in fittings
UC-1/4	Silencer · Silencer
QS-1/4-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/4-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QS-1/4-4	Push-in fitting · Push-in fittings
QS-1/4-12-I	Push-in fitting · Push-in fittings
QS-1/4-1/4-I-U-M	Push-in fitting · Push-in fittings
UC-1/4-20	Silencer · Silencer
CPE10-H5-SET	Retaining bracket · Connection accessories
CPE10-RP	Cover plate · Connection accessories
CPE10-H5-50	Retaining bracket · Connection accessories
M3X40-8.8-VS-100	Socket head screw · Connection accessories
CPV10-VI-P.M7-150	Seal · Connection accessories
