How can I get a price quote for FESTO CMMP-AS-C5-3A-M0?

You can request a fast quote for FESTO CMMP-AS-C5-3A-M0 from Yılsa Engineering. Reference part number CEY-937FC781AD98. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CMMP-AS-C5-3A-M0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CMMP-AS-C5-3A-M0 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CMMP-AS-C5-3A-M0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

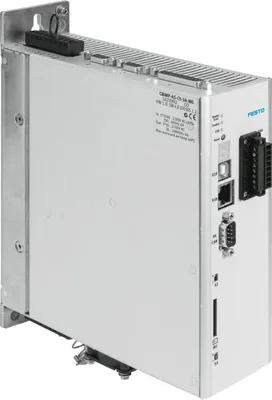

FESTO CMMP-AS-C5-3A-M0

Motor controller. Many interfaces and functions for decentralised motion functions (flying saw, flying measurement, modulo function, etc.). Optional: integrated cam disk controllers and highly dynamic movements. Standardised interfaces allow seamless integration in mechatronic multi-axis modular systems. Reliable and easy commissioning and parameterisation with the Festo Configuration Tool (FCT). Optionally with 3 slots for extension modules. Variants with safety functions. 255 positioning records

FESTOMFR # CMMP-AS-C5-3A-M0SKU # CEY-937FC781AD98

Type of mountingOn sub-base, Screw-clamped

Product weight2200

Display7-segment display

ApprovalRCM, c UL us - Listed (Oil)

Storage temperature-25, 70

Ambient temperature0, 40

Have questions?Chat on WhatsApp

About This Product

FESTO CMMP-AS-C5-3A-M0

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of mountingOn sub-base, Screw-clamped

Product weight2200

Display7-segment display

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions

Certificate issuing authorityGerman Technical Control Board (TÜV) Rheinland 01/205/5262.03/25

Storage temperature-25, 70

Ambient temperature0, 40

Relative air humidity0 - 90%

Degree of protectionIP10, IP20

Pollution degree2

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Phases of nominal operating voltageSingle phase

Nominal operating voltage AC230

Permissible voltage fluctuations+/-10%

Input voltage range AC100, 230

Mains frequency50, 60

Nominal current4, 6

Active PFCYes

Mains filterBuilt in

Max. intermediate circuit voltage DC320

Brake resistance60

Pulse power, brake resistance2.8

Nominal voltage for logic power supply DC24

Permissible range for logic voltage±20%

Current consumption of logic power supply without clamping brake0.65

Output voltage class AC3x 0 - 270 V

Nominal output current5

Nominal current per phase, effective5

Peak current per phase, effective10

Max. peak current duration5

Controller nominal output1000

Maximum output2000

Output frequency0, 1000

Parameterisation interfaceParameterisation and commissioning, USB, Ethernet

Fieldbus linkCANopen, Modbus/TCP

Communication profileDS301/DSP402

Process interfacingI/O coupling, For 256 positioning records

Max. fieldbus transmission rate1

Bus connectionPlug, 9-pin, Sub-D

Encoder interface output, featuresResolution 16384 ppr

Encoder interface output, functionActual value feedback via encoder signals in speed control mode., Setpoint specification for downstream slave drive.

Encoder interface input, featuresRS422, SINCOS

Encoder interface input, functionSetpoint speed value as encoder signal, Specifies the speed of the slave drive in synchronous mode.

Number of digital logic inputs10

Features of logic inputGalvanically separated, Freely configurable

Working range of logic input8, 30

Number of digital logic outputs 24 V DC5

Features of digital logic outputsGalvanically separated, Freely configurable in some cases

Max. current digital logic outputs100

Number of analogue setpoint inputs2

Features of setpoint inputsDifferential inputs, Configurable for speed, Configurable for current

Working range setpoint input± 10 V

Impedance of setpoint input20

Number of analogue monitor outputs2

Working range of monitor outputs± 10 V

Resolution of monitor outputs9

Features of monitor outputsshort-circuit proof

Safety functionSafe torque off (STO), Safe Stop 1 (SS1)

Safety Integrity Level (SIL)Safe torque off (STO)/SIL 3/SILCL 3

Performance Level (PL)Safe Torque Off (STO)/category 4, performance level e

Diagnostic coverage97

SFF Safe Failure Fraction99.17

Hardware fault tolerance1

Proof test interval20

Accessories 45

Genuine accessories that can be used with the FESTO CMMP-AS-C5-3A-M0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GFCH-1	Commissioning · Services
GFCH-2	Commissioning · Services
GFCH-3	Commissioning · Services
GFCH-1-R	Remote commissioning · Services
GFCH-2-R	Remote commissioning · Services
GFCH-3-R	Remote commissioning · Services
FBSD-KL-2X5POL	Bus connection · Electrical accessories
FBS-SUB-9-WS-CO-K	Plug · Electrical accessories
NEBC-S1G25-K-2.5-N-LE26	Control cable · Electrical accessories
NEKM-C-3	Assortment of plugs · Electrical accessories
P.BE-CMMP-FHPP-PB-SW-DE	Description · General accessories
P.BE-CMMP-FHPP-PB-SW-EN	Description · General accessories
P.BE-CMMP-FHPP-PB-SW-ES	Description · General accessories
P.BE-CMMP-FHPP-PB-SW-FR	Description · General accessories
P.BE-CMMP-FHPP-PB-SW-IT	Description · General accessories
P.BE-CMMP-CO-SW-DE	Description · General accessories
P.BE-CMMP-CO-SW-EN	Description · General accessories
P.BE-CMMP-CO-SW-ES	Description · General accessories
P.BE-CMMP-CO-SW-FR	Description · General accessories
P.BE-CMMP-FHPP-DN-SW-DE	Description · General accessories
P.BE-CMMP-SC-SW-DE	Description · General accessories
P.BE-CMMP-SC-SW-ES	Description · General accessories
P.BE-CMMP-SC-SW-FR	Description · General accessories
P.BE-CMMP-SC-SW-IT	Description · General accessories
NEBC-M9W5-K-2-N-LE3	Connecting cable · Connecting cables
NEBC-M9W5-K-5-N-LE3	Connecting cable · Connecting cables
NECC-A-S-S1G9-C2M	Plug · Electrical accessories
P.BE-CMMX-EC-SW-DE	Description · General accessories
P.BE-CMMX-EC-SW-EN	Description · General accessories
P.BE-CMMX-EC-SW-ES	Description · General accessories
P.BE-CMMX-EC-SW-FR	Description · General accessories
P.BE-CMMX-EC-SW-IT	Description · General accessories
CACR-LE2-72-W500	Braking resistor · Electrical accessories
CAMC-M-S-F10-V1	Memory card · Electrical accessories
NEBC-U1G4-K-1.8-N-U2G4	Programming cable · Electrical accessories
NEKM-C-7	Assortment of plugs · Electrical accessories
CACR-LE2-50-W500	Braking resistor · Electrical accessories
NEBM-T1G8-E-20-N-S1G15	Encoder cable · Electrical accessories
NEBM-T1G8-E-25-N-S1G15	Encoder cable · Electrical accessories
NEFC-S1G25-C2W25-S7	Manifold block · Electrical accessories
NEFC-S1G25-C2W25-S6	Plug · Electrical accessories
NEBC-S1G25-K-3.2-N-LE25	Control cable · Electrical accessories
NEBC-S1G25-K-1.0-N-S1G25	Connecting cable · Connecting cables
NEBC-S1G25-K-2.0-N-S1G25	Connecting cable · Connecting cables
NEBC-S1G25-K-5.0-N-S1G25	Connecting cable · Connecting cables
