How can I get a price quote for Festo CAPS-M1-VDE2-D-A-AL-N14?

You can request a fast quote for Festo CAPS-M1-VDE2-D-A-AL-N14 from Yılsa Engineering. Reference part number YLSKS7TU2SVEUGJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CAPS-M1-VDE2-D-A-AL-N14 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CAPS-M1-VDE2-D-A-AL-N14 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CAPS-M1-VDE2-D-A-AL-N14?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

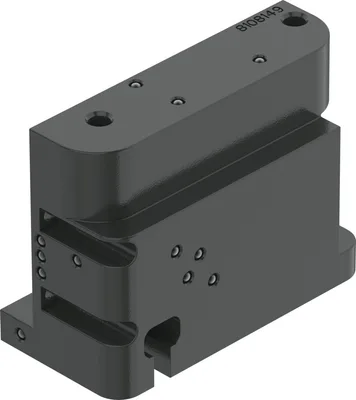

Festo CAPS-M1-VDE2-D-A-AL-N14

Manifold block. Prepared for positioner CMSH-V-SD with the mechanical interface for the sub-base version and switchable with mode of operation in the single-acting/double-acting version. Determines the operating mode of the positioner CMSH-V-SD. Variants with mechanical interface to VDI/VDE 3845 or to VDI/VDE 3847-2. Variants with or without pressure gauge connection. With safety functions

FestoMFR # CAPS-M1-VDE2-D-A-AL-N14SKU # YLSKS7TU2SVEUGJ

Dimensions (W x L x H)80 mm x 104 mm x 50 mm

Mode of operationDouble-acting

LABS (PWIS) conformityVDMA24364 zone III

Product weight650

Type of mountingTo VDI/VDE 3847-2

Pneumatic connection1/4 NPT
