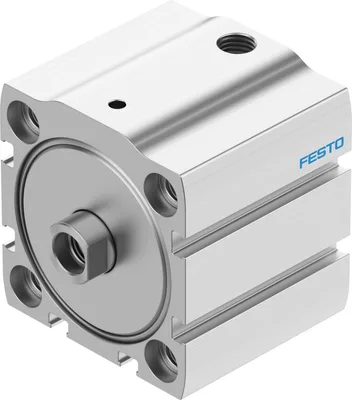

Festo AEN-S-50-25-A-P

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing

FestoMFR # AEN-S-50-25-A-PSKU # YLSH6FAGRSGMA

Stroke25

Piston diameter50 mm

Mounting positionAny

Mode of operationPushing

Piston-rod endMale thread

DesignPiston, Piston rod

Have questions?Chat on WhatsApp

About This Product

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing

Festo AEN-S-50-25-A-P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke25

Piston diameter50 mm

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationPushing

Piston-rod endMale thread

DesignPiston, Piston rod

Symbol00991729

VariantsAdditional PTFE piston guide

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature0, 80

Impact energy in end positions0.6

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke71.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178

Moving mass for 0 mm stroke105

Additional moving mass per 10 mm stroke16

Basic weight for 0 mm stroke310

Additional weight per 10 mm stroke63

Type of mountingEither:, With through-hole, With female thread, With accessories

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material dynamic sealsNBR

Material housingAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 15

Genuine accessories that can be used with the Festo AEN-S-50-25-A-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRZNG-50	Trunnion flange · Cylinder mountings
FNC-50	Flange mounting · Cylinder mountings
KSZ-M12X1,25	Coupling piece · Cylinder mountings
KSG-M12X1,25	Coupling piece · Cylinder mountings
HNA-50	Foot mounting · Cylinder mountings
GRLA-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-MF-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-MF-D	One-way flow control valve · Function fittings
