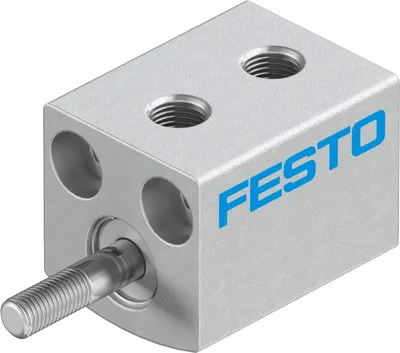

Festo ADVC-4-2,5-A-P

Short-stroke cylinder. Very short overall length. High forces in a compact size. Piston rod with female or male thread. Optimised fitting space and height. Mounting hole pattern to VDMA 24562 as of Ø 32 mm. For position sensing with proximity sensor for T-slot and for C-slot

FestoMFR # ADVC-4-2,5-A-PSKU # CEY-937FC78232AD

Stroke2.5

Piston diameter4 mm

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod

Position detectionNone

Have questions?Chat on WhatsApp

About This Product

Festo ADVC-4-2,5-A-P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke2.5

Piston diameter4 mm

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod

Position detectionNone

Symbol00991227

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke5.7

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke7.5

Moving mass0.2

Product weight3.8

Type of mountingWith through-hole, With accessories

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy, anodised

Material sealsHNBR, NBR

Material housinganodised

Material piston rodWrought aluminium alloy, anodised

Accessories 9

Genuine accessories that can be used with the Festo ADVC-4-2,5-A-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
QSM-M3-3-I	Push-in fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
