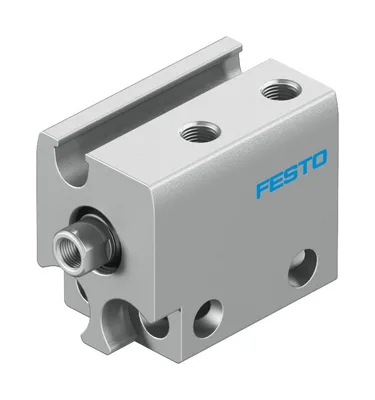

Festo ADN-S-6-5-I-F1A
Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. Piston rod with female or male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials
Stroke5
Piston diameter6 mm
CushioningNo cushioning
Mounting positionAny
Mode of operationDouble-acting
Piston-rod endFemale thread
About This Product
Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. Piston rod with female or male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials
Festo ADN-S-6-5-I-F1A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke5
Piston diameter6 mm
CushioningNo cushioning
Mounting positionAny
Mode of operationDouble-acting
Piston-rod endFemale thread
DesignPiston, Piston rod
Symbol00991215
VariantsPiston rod at one end
Operating pressure0.2, 0.8
Operating pressure2, 8
Operating pressure21.75, 116
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
Ambient temperature-10, 60
Impact energy in end positions0.006
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke9.4
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17
Moving mass1.5
Product weight9.2
Type of mountingWith through-hole
Pneumatic connectionM3
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material dynamic sealsNBR, TPE-U(PU)
Material housinganodised
Material piston rodHigh-alloy stainless steel
