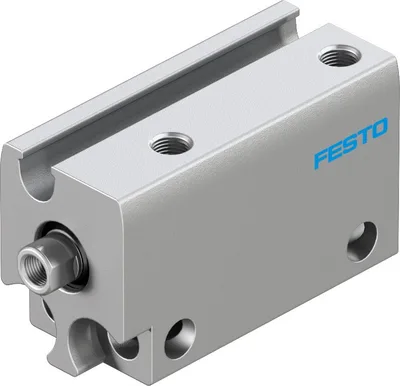

Festo ADN-S-6-10-I-A-F1A

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. Piston rod with female or male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # ADN-S-6-10-I-A-F1ASKU # YLSWSKDCSTO8HJM

Stroke10

Piston diameter6 mm

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endFemale thread

Have questions?Chat on WhatsApp

About This Product

Festo ADN-S-6-10-I-A-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10

Piston diameter6 mm

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endFemale thread

DesignPiston, Piston rod

Position detectionVia proximity switch

Symbol00991216

VariantsPiston rod at one end

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure21.75, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.006

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke9.4

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17

Moving mass2.4

Product weight13.6

Type of mountingWith through-hole

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material dynamic sealsNBR, TPE-U(PU)

Material housinganodised

Material piston rodHigh-alloy stainless steel
