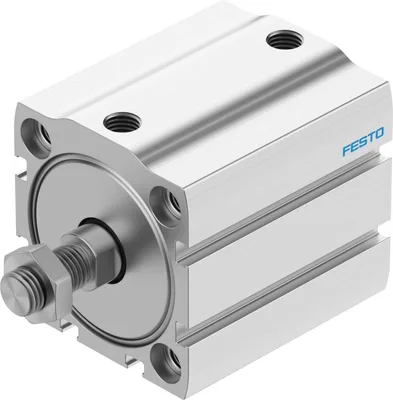

Festo ADN-S-50-45-A-P

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. Piston rod with female or male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # ADN-S-50-45-A-PSKU # YLSFOQM5YDRVYMK

Stroke45

Piston diameter50 mm

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endMale thread

DesignPiston, Piston rod

Have questions?Chat on WhatsApp

About This Product

Festo ADN-S-50-45-A-P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke45

Piston diameter50 mm

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endMale thread

DesignPiston, Piston rod

Symbol00991217

VariantsAdditional PTFE piston guide

Operating pressure0.04, 1

Operating pressure0.4, 10

Operating pressure5.8, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature0, 80

Impact energy in end positions0.6

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1057

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178

Moving mass for 0 mm stroke105

Additional moving mass per 10 mm stroke16

Basic weight for 0 mm stroke310

Additional weight per 10 mm stroke63

Type of mountingEither:, With through-hole, With female thread, With accessories

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material dynamic sealsNBR

Material housingAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 27

Genuine accessories that can be used with the Festo ADN-S-50-45-A-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRZNG-50	Trunnion flange · Cylinder mountings
FNC-50	Flange mounting · Cylinder mountings
SNCB-50	Swivel flange · Cylinder mountings
SNCS-50	Swivel flange · Cylinder mountings
SNCL-50	Swivel flange · Cylinder mountings
ZNCF-50	Trunnion flange · Cylinder mountings
SNCB-50-R3	Swivel flange · Cylinder mountings
VFOE-LE-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
HNA-50	Foot mounting · Cylinder mountings
HNA-50-R3	Foot mounting · Cylinder mountings
DPNA-50	Multi-position kit · Cylinder mountings
GRLA-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-MF-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-MF-D	One-way flow control valve · Function fittings
