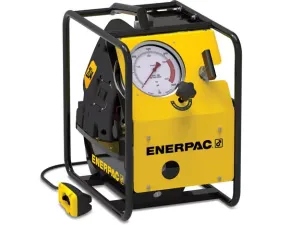

Enerpac ZUTP1500SB 1500 bar Tensioning Pump

Enerpac ZUTP1500SB; 1500 bar (21,750 psi) maximum pressure, 1.25 kW motor, 115 V two-speed electric hydraulic tensioning pump with solenoid valve.

EnerpacMFR # ZUTP1500SBSKU # YLSVOD7JAO6LN6

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

Motor Phases1 Ph

Output Flow Rate at No Load230 in³/min

Motor Electrical Specification115 V, 1 Ph

Maximum Operating Pressure1500 bar (21,750 psi)

Have questions?Chat on WhatsApp

About This Product

The ZUTP1500SB is a two-speed electric hydraulic tensioning pump from the Enerpac ZUTP-S series. Its maximum operating pressure is 1500 bar (21,750 psi), and it runs on a 115 V, single-phase, 50 Hz supply with a 1.25 kW (1.7 hp) motor. The valve is solenoid operated. The two-stage design delivers high flow at low pressure (3.8 l/min at 0 bar) and controlled flow at high pressure (0.33 l/min at 1500 bar). Usable oil capacity is 1 gallon, reservoir capacity is 4000 cm³ (231 in³), and sound level is 89 dBA. The pendant-operated solenoid valve suits multiple bolt tensioning jobs with single-person operation; the operator can pressurize and depressurize the tensioner directly from the pendant.

Features and Benefits

ZUTP-series pumps reach high pressure without an intensifier, reducing maintenance and cost for the end user
Solenoid-operated valve with 20 ft pendant for remote control and one-person operation
Easily accessible manual override valve to release pressure if power is lost
Safety relief valve limits output pressure
Two-stage pump design with high flow at low pressure for fast system fills

Enerpac ZUTP1500SB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

Motor Phases1 Ph

Maximum Flow at Rated Pressure0.33 l/min (20 in3/min · 0,33 l/min · 20 in³/min)

Output Flow Rate at No Load230 in³/min

Motor Electrical Specification115 V, 1 Ph

Maximum Operating Pressure1500 bar (21,750 psi)

Output Flow Rate (at 0 bar)3,8 l/min

Motor Voltage115 V V

Usable Oil Capacity4,0 l (1 gal)

Output Flow Rate (at 1500 bar)0,33 l/min (20 in³/min)

Motor Frequency50 Hz Hz

Product TypeElectric Pump - Tensioning

Reservoir Capacity4000 cm³ (231 in³)

Sound Level89 dB(A)

Valve OperationSolenoid

Motor Size1,25 kW (1.7 hp)

SeriesZUTPS

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Product LineBolting Tools

Weight29,5 kg (65 lbs)

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualElectric Tensioning Pump, ZUTP-1500S SeriesPDF·4.4 MB

Repair Parts SheetZUTP-1500S Series Electric Tensioning Pumps 21.750 psi [1500 bar] RPSPDF·4.6 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2A-ZU-TPS_RevC_Oct2022PDF·400 KB

BrochureZUTP-Series Electric Tensioning Pumps; EnglishPDF·275 KB
