How can I get a price quote for Enerpac ZUTP1500B?

You can request a fast quote for Enerpac ZUTP1500B from Yılsa Engineering. Reference part number CEY-55221B116832. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZUTP1500B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZUTP1500B genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZUTP1500B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

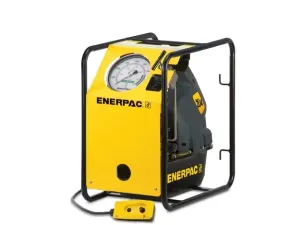

Enerpac ZUTP1500B 1500 bar Tensioning Pump

Enerpac ZUTP1500B; 1500 bar (21,750 psi) maximum pressure, 3.8 l/min free flow, 115 V single-phase two-speed electric hydraulic tensioning pump.

EnerpacMFR # ZUTP1500BSKU # CEY-55221B116832

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

Motor Phases1 Ph

Output Flow Rate at No Load230 in³/min

Motor Electrical Specification115 V, 1 Ph

Maximum Operating Pressure1500 bar (21,750 psi)

Have questions?Chat on WhatsApp

About This Product

The ZUTP1500B is a two-speed electric hydraulic tensioning pump from the Enerpac ZUTP series. Its maximum operating pressure is 1500 bar (21,750 psi), and it runs on a 115 V single-phase supply. It is controlled with a manual valve. The two-stage pump design delivers high flow at low pressure (3.8 l/min at 0 bar) and controlled flow at high pressure (0.33 l/min at 1500 bar). Usable oil capacity is 1 gallon and reservoir capacity is 4000 cm³ (231 in³). The pump weighs about 29.5 kg (65 lb) and has a sound level of 89 dBA. It is used to power hydraulic bolt tensioners in bolt tensioning and bolting applications.

Features and Benefits

High-efficiency universal motor draws lower amps for good performance at remote sites with low power quality
Two-stage pump: high flow at low pressure for fast fills, controlled flow at high pressure for safe and accurate operation
Compact, lightweight design (29.5 kg) that fits through tight openings and is easy to handle
Panel-mounted 6" pressure gauge with polycarbonate cover set into a protective metal shroud for visibility and safety
Panel-mounted user-adjustable valve for precise pressure control; safety relief valve limits output pressure
Meets CE safety and TÜV requirements

Enerpac ZUTP1500B

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

Motor Phases1 Ph

Maximum Flow at Rated Pressure0.13 l/min (20 in3/min · 0,13 l/min · 20 in³/min)

Output Flow Rate at No Load230 in³/min

Motor Electrical Specification115 V, 1 Ph

Maximum Operating Pressure1500 bar (21,750 psi)

Output Flow Rate (at 0 bar)3,8 l/min

Motor Voltage115 V V

Usable Oil Capacity4,0 l (1 gal)

Output Flow Rate (at 1500 bar)0,33 l/min (20 in³/min)

Product TypeElectric Pump - Tensioning

Reservoir Capacity4000 cm³ (231 in³)

Sound Level89 dB(A)

Valve OperationManual

SeriesZUTP

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Product LineBolting Tools

Weight29,5 kg (65 lbs)

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualElectric Tensioning Pump, Model ZUTP-1500 - 1500 Bar (Later models with jog button)PDF·684 KB

Repair Parts SheetElectric Tensioning Pump, 1500 Bar - Models with jog button on pump front bracket & updated pump element (per Date code C)PDF·4.4 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZUTP-Series Electric Tensioning Pumps; EnglishPDF·275 KB

Alternative Names & Search Terms

ZUTP1500BZUTP-1500BZUTP 1500BEnerpac ZUTP1500BEnerpac ZUTP-1500BZUTP1500B pumpZUTP1500B tensioning pumpZUTP1500B electric hydraulic pumpEnerpac ZUTP seriesEnerpac ZUTP tensioning pump1500 bar electric hydraulic pump1500 bar bolt tensioning pumptwo speed electric hydraulic pump115V electric hydraulic tensioning pump1 gallon usable oil hydraulic pump21,750 psi electric hydraulic pumpEnerpac bolt tensioning pumpelectric tensioning pump with manual valve

Cookie Notice

Enerpac ZUTP1500B 1500 bar Tensioning Pump

About This Product

Features and Benefits

Enerpac ZUTP1500B

Specifications

Documents & CAD

Series documents 5· shared by this product series

Related Products

Enerpac HT1506HR 1500 bar Tensioner Hose

Enerpac HT1510 1500 bar Tensioner Hose

Enerpac HT1503HR 1500 bar Tensioner Hose

Enerpac HT1510HR 1500 bar Tensioner Hose

Enerpac B150 1500 bar Quick Disconnect Coupler

Enerpac BW150AW 1500 bar Coupler & Adaptor Kit

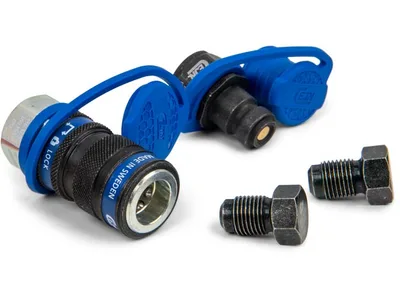

Enerpac B150B 1500 bar Blanking Coupler Set
