How can I get a price quote for Enerpac ZU4420LB?

You can request a fast quote for Enerpac ZU4420LB from Yılsa Engineering. Reference part number CEY-55221B118065. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZU4420LB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZU4420LB genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZU4420LB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

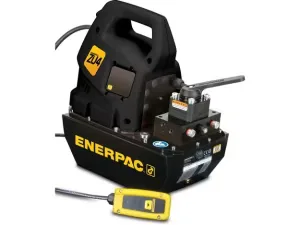

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac ZU4420LB 700 bar Electric Hydraulic Pump

Enerpac ZU4420LB; 700 bar (10,000 psi), 115 V, 5 gallon usable oil, Pro portable electric hydraulic pump with LCD display and manual 4/3 valve.

EnerpacMFR # ZU4420LBSKU # CEY-55221B118065

Dimension E500 mm (19.7 in)

Maximum Operating Pressure Range10,000 psi

Motor Phases1 Ph

Dimension F396 mm (15.6 in)

Dimension D422 mm (16.6 in)

Maximum Flow at Rated Pressure60 in3/min

Have questions?Chat on WhatsApp

About This Product

ZU4420LB is the Pro model of the Enerpac ZU4 series with manual control at the pump. It offers a maximum operating pressure of 700 bar (10,000 psi), a 115 V / 1 ph / 50-60 Hz motor and 5 gallon (1,201 in³) usable oil capacity. The valve is a 4-way, 3-position, tandem-center manual type. The pump delivers 8.8 L/min at 50 bar, with the relief valve adjustable from 140 to 700 bar. A back-lit LCD readout provides pressure display and the diagnostic functions specific to Pro models. Intermittent duty, 85-90 dBA sound level. It suits workshop, maintenance and field applications where hydraulic cylinders and tools need to be powered remotely in high-speed, intermittent-duty service.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Manual 4/3 valve controlled at the pump
Back-lit LCD readout: pressure display and diagnostics
Z-Class high-efficiency pump design
1.7 hp universal electric motor, 115 V
High-strength molded composite shroud with ergonomic carrying handle

Enerpac ZU4420LB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E500 mm (19.7 in)

Maximum Operating Pressure Range10,000 psi

Motor Phases1 Ph

Dimension F396 mm (15.6 in)

Dimension D422 mm (16.6 in)

Maximum Flow at Rated Pressure60 in3/min

Dimension C413 mm (16.5 in)

Motor Electrical Specification115 V, 1 Ph, 50/60 Hz

Output Flow Rate @ 50 bar8,8 l/min

Valve FunctionAdvance / Hold / Retract

Dimension B180 mm (7.1 in)

Motor Voltage115 V V

Usable Oil Capacity20,0 l (5 gal)

Pump ControlManual

Output Flow Rate (100 psi)700 in³/min

Relief Valve Adjustment Range140 - 700 bar (2,000 - 10,000 psi)

Motor Frequency50/60 Hz Hz

Product TypeElectric Pump - Portable

Duty CycleIntermittent

Reservoir Capacity20000 cm³ (1,201 in³)

Sound Level85 - 90 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationManual

Pump Valve Type4-way, 3-position, Tandem Center

Output Flow Rate @ 7 bar11,5 l/min

Motor Size1.7 hp

SeriesZU

Output Flow Rate @ 700 bar1,0 l/min (60 in³/min)

Pump Power SourceElectric

Flow Rate Range at Rated Pressure60 - 119 in³/min

Output Flow Rate (700 psi)535 in³/min

Cylinder CompatibilityDouble-acting

Output Flow Rate (5000 psi)76 in³/min

Dimension A465 mm (18.3 in)

Valve ModelVM43

Product LineIndustrial Tools

Weight50 kg (109 lbs)

Output Flow Rate @ 350 bar1,2 l/min

Documents & CAD

Series documents 5· shared by this product series

Repair Parts SheetElectric Pump - ZU4PDF·4.9 MB 4 languages· in one file

Repair Parts SheetRepair Parts SheetPDF·3.0 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZU4-Series Electric Pumps; EnglishPDF·766 KB
