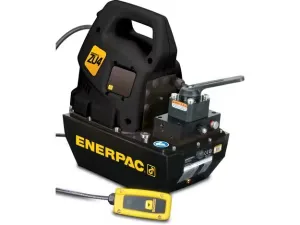

Enerpac ZU4320RB 700 bar Electric Hydraulic Pump

Enerpac ZU4320RB; 700 bar (10,000 psi), 5 gal (approx. 19 L) usable oil, 115 V, Classic portable electric hydraulic pump with 3/3 manual valve.

EnerpacMFR # ZU4320RBSKU # YLSD0RDR3LEBUNN

Dimension E500 mm (19.7 in)

Maximum Operating Pressure Range10,000 psi

Motor Phases1 Ph

Dimension F396 mm (15.6 in)

Dimension D422 mm (16.6 in)

Maximum Flow at Rated Pressure60 in3/min

Have questions?Chat on WhatsApp

About This Product

ZU4320RB is a portable electric hydraulic pump from the Classic version of the ZU series. It is a 2-stage design running on 115 V, 1 Ph, 50/60 Hz and provides a maximum operating pressure of 700 bar (10,000 psi). Usable oil capacity is 5 gal (reservoir 1,201 in³). The pump is manually controlled. A 3-way, 3-position, tandem center valve provides advance / hold / retract functions. Output flow is 8.8 L/min at 50 bar and about 1.0 L/min (60 in³/min) at rated pressure. The relief valve is adjustable from 140 to 700 bar. Duty cycle is intermittent and sound level is 85 - 90 dBA. It is used to power cylinders and hydraulic tools in maintenance, assembly and lifting applications where remote hydraulic power is needed.

Features and Benefits

Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running
18% less current draw than comparable pumps
700 bar (10,000 psi) maximum operating pressure, 140 - 700 bar adjustable relief valve
3/3 manual valve (tandem center) for advance / hold / retract control
5 gal usable oil capacity suits long-stroke and multiple cylinder applications

Enerpac ZU4320RB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E500 mm (19.7 in)

Maximum Operating Pressure Range10,000 psi

Motor Phases1 Ph

Dimension F396 mm (15.6 in)

Dimension D422 mm (16.6 in)

Maximum Flow at Rated Pressure60 in3/min

Dimension C413 mm (16.5 in)

Motor Electrical Specification115 V, 1 Ph, 50/60 Hz

Output Flow Rate @ 50 bar8,8 l/min

Valve FunctionAdvance / Hold / Retract

Dimension B180 mm (7.1 in)

Motor Voltage115 V V

Usable Oil Capacity20,0 l (5 gal)

Pump ControlManual

Output Flow Rate (100 psi)700 in³/min

Relief Valve Adjustment Range140 - 700 bar (2,000 - 10,000 psi)

Motor Frequency50/60 Hz Hz

Product TypeElectric Pump - Portable

Duty CycleIntermittent

Reservoir Capacity20000 cm³ (1,201 in³)

Sound Level85 - 90 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationManual

Pump Valve Type3-way, 3-position, Tandem Center

Output Flow Rate @ 7 bar11,5 l/min

Motor Size1.7 hp

SeriesZU

Output Flow Rate @ 700 bar1,0 l/min (60 in³/min)

Pump Power SourceElectric

Flow Rate Range at Rated Pressure60 - 119 in³/min

Output Flow Rate (700 psi)535 in³/min

Cylinder CompatibilitySingle-acting

Output Flow Rate (5000 psi)76 in³/min

Dimension A465 mm (18.3 in)

Valve ModelVM33

Product LineIndustrial Tools

Weight50 kg (109 lbs)

Output Flow Rate @ 350 bar1,2 l/min

Documents & CAD

Series documents 1· shared by this product series

BrochureZU4-Series Electric Pumps; EnglishPDF·766 KB
