How can I get a price quote for Enerpac ZE6210XW-S?

You can request a fast quote for Enerpac ZE6210XW-S from Yılsa Engineering. Reference part number YLSDCHVEMXM9RRW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZE6210XW-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZE6210XW-S genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZE6210XW-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

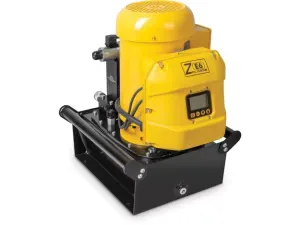

Enerpac ZE6210XW-S Electric Pump for EDCH Cutters

Enerpac ZE6210XW-S; 700 bar (10,000 psi) maximum pressure, 10 L (2.5 gallon) usable oil, 5.6 kW 380-415 V 3-phase electric hydraulic pump for EDCH cutters.

EnerpacMFR # ZE6210XW-SSKU # YLSDCHVEMXM9RRW

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

Motor Phases3 Ph

Motor Electrical Specification380-415 V, 3 ph, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Motor Voltage380-415 V V

Have questions?Chat on WhatsApp

About This Product

ZE6210XW-S is a specialty ZE6-series electric hydraulic pump designed for Enerpac EDCH hydraulic cutters. This single-stage pump has a manual valve, a 700 bar (10,000 psi) maximum pressure and 10 L (2.5 gallons) of usable oil. The motor is rated 380-415 V, 3-phase, 50/60 Hz, 5.6 kW (7.5 HP); weight is 77 kg. A specially adapted twin hose connects it directly to the cutter, and control is from the cutter itself with no pendant required. It uses an induction motor for industrial applications needing extended duty cycles and is rated IP54. The cutter, pump and hose are sold separately and all are required for the system to function.

Features and Benefits

Specialty ZE6-series pump provides the precise flow required by EDCH hydraulic cutters
Special twin hose connects directly to the cutter; controlled from the cutter, no pendant required
Induction motor, 5.6 kW (7.5 HP), for extended duty cycles
380-415 V, 3-phase, 50/60 Hz motor
IP54 rating for dust and water protection
700 bar maximum pressure, 10 L usable oil

Enerpac ZE6210XW-S

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

Motor Phases3 Ph

Motor Electrical Specification380-415 V, 3 ph, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Motor Voltage380-415 V V

Usable Oil Capacity10 l (2.5 gal)

Output Flow Rate (100 psi)200 in³/min

Motor Frequency50/60 Hz Hz

Product TypeElectric Pump - Cutters

Duty CycleExtended

Reservoir Capacity10000 cm³ (601 in³)

Valve OperationManual

Motor Size5,6 kW (7.5 hp)

SeriesZE

Output Flow Rate @ 10,000 psi200 in³/min

Pump Power SourceElectric

Product LineIndustrial Tools

Weight77 kg (170 lbs)

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·6.2 MB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·5.0 MB 4 languages· in one file

Repair Parts SheetZE/ZW Electric PumpPDF·1.8 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2A-HYDCUTTERSWITHELECTRICPUMPS_RevD_Oct2022PDF·373 KB

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB
