How can I get a price quote for Enerpac ZE3104DB?

You can request a fast quote for Enerpac ZE3104DB from Yılsa Engineering. Reference part number CEY-937FC77BF5A8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZE3104DB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZE3104DB genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZE3104DB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

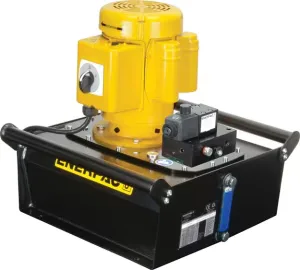

Enerpac ZE3104DB 700 bar Electric Pump

Enerpac ZE3104DB; 700 bar (10,000 psi), 0.75 kW (1 hp) 115 V motor, 1 gal (3.8 L) usable oil, electric hydraulic pump with 3/2 solenoid dump valve and LCD.

EnerpacMFR # ZE3104DBSKU # CEY-937FC77BF5A8

Maximum Operating Pressure Range10,000 psi

Country of OriginUnited States

Motor Phases1 Ph

Maximum Flow at Rated Pressure40 in3/min (40 in³/min)

Dimension C152 mm (6 in)

Motor Electrical Specification115 V, 1 Ph, 50/60 Hz

Have questions?Chat on WhatsApp

About This Product

The ZE3104DB is a high-flow electric hydraulic pump from the Enerpac ZE3 series. Its 0.75 kW (1 hp) induction motor runs on 115 V, 1 phase, 50/60 Hz at 1,750 rpm. Maximum operating pressure is 700 bar (10,000 psi), and the relief valve is adjustable between 70 and 700 bar. The pump comes with a 3/2 (3-way, 2-position) solenoid dump valve, an electric box and an LCD, and is controlled by a pendant. It delivers 40 in³/min (about 0.66 L/min) at 10,000 psi. Usable oil capacity is 1 gal (about 3.8 L), with a 277 in³ reservoir. Sound level is 75 dBA and height is 513 mm. Based on the Z-Class high-efficiency pump design, the ZE3 series suits continuous use in manufacturing and workshop environments.

Features and Benefits

0.75 kW (1 hp) induction motor for long life and quiet operation
Z-Class high-efficiency design: higher oil flow and by-pass pressure, cooler running, up to 18% less current draw than comparable pumps
Totally enclosed, fan-cooled industrial electric motor
3/2 solenoid valve, electric box and LCD; pendant control
Relief valve adjustable from 70 to 700 bar, 75 dBA sound level

Enerpac ZE3104DB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range10,000 psi

Country of OriginUnited States

Motor Phases1 Ph

Maximum Flow at Rated Pressure40 in3/min (40 in³/min)

Dimension C152 mm (6 in)

Motor Electrical Specification115 V, 1 Ph, 50/60 Hz

Output Flow Rate @ 50 bar6,3 l/min

Valve FunctionAdvance / Retract

Dimension B279 mm (11 in)

Motor Voltage115 V V

Usable Oil Capacity4,0 l (1 gal)

Pump ControlPendant

Output Flow Rate (100 psi)450 in³/min

Relief Valve Adjustment Range70 - 700 bar (1,000 - 10,000 psi)

Dimension H513 mm (20.2 in)

Motor Frequency50/60 Hz Hz

Product TypeElectric Pump - High Flow

Motor Speed1,750 rpm

Duty CycleExtended

Reservoir Capacity4000 cm³ (277 in³)

Sound Level75 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationSolenoid

Pump Valve Type3-way, 2-position

Output Flow Rate @ 7 bar7,4 l/min

Motor Size1 hp

SeriesZE

Output Flow Rate @ 700 bar0,65 l/min (40 in³/min)

Pump Power SourceElectric

Flow Rate Range at Rated Pressure40 - 59 in³/min

Output Flow Rate (700 psi)385 in³/min

Pump OperationDump

Cylinder CompatibilitySingle-acting

Output Flow Rate (5000 psi)42 in³/min

Dimension A143 mm (5.6 in)

Solenoid Valve Voltage24 VCC

Valve ModelVE32D

Product LineIndustrial Tools

Weight43 kg (94 lbs)

Output Flow Rate @ 350 bar0,68 l/min

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualZ-Class Electric Pumps, LCD Control Panel Operation - Firmware 7.xPDF·280 KB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·6.2 MB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·5.0 MB 4 languages· in one file

Repair Parts SheetZE/ZW Electric PumpPDF·1.8 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB
