Enerpac ZE3010NW 700 bar Electric Pump

Enerpac ZE3010NW; 700 bar maximum pressure, 10 L usable oil, 0.75 kW 3-phase motor, electric hydraulic pump without valve, electric box or LCD.

EnerpacMFR # ZE3010NWSKU # YLS7JQHMVSB6028

Country of OriginUnited States

Motor Phases3 Ph

Dimension F371 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Have questions?Chat on WhatsApp

About This Product

ZE3010NW is a ZE series high-flow electric hydraulic pump. It is supplied without valve and without electric box or LCD. Maximum operating pressure is 700 bar. It is driven by a 380-415 V, 3-phase, 50/60 Hz, 0.75 kW motor. Usable oil capacity is 10 L. Oil flow is 6.15 l/min at 7 bar, 5.26 l/min at 50 bar, 0.57 l/min at 350 bar and 0.55 l/min at 700 bar. Weight is 45 kg and sound level is 75 dBA. With its high-efficiency pump design and extended duty cycle it is used in industrial hydraulic systems. Since the valve is selected separately, it suits applications that require a custom valve configuration.

Features and Benefits

High-efficiency pump design with higher oil flow and by-pass pressure
Totally enclosed, fan-cooled industrial electric motor with steel fan guard
Full sight oil level glass
40 micron filter
Supplied without valve and electric box; 0.75 kW, 380-415 V, 3-phase motor
10 L usable oil, 700 bar maximum pressure

Enerpac ZE3010NW

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Motor Phases3 Ph

Dimension F371 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Dimension E384 mm

Motor Voltage380-415 V V

Dimension D305 mm

Motor Frequency50/60 Hz Hz

Maximum Operating Pressure Range700 bar

Product TypeElectric Pump - High Flow

Duty CycleExtended

Maximum Flow at Rated Pressure0.55 l/min (0,55 l/min)

Dimension H600 mm

Sound Level75 dB(A)

Output Flow Rate at 700 bar0,55 in³/min

Output Flow Rate @ 7 bar6,15 l/min

SeriesZE

Motor Size0,75 kW

Output Flow Rate @ 700 bar0,55 l/min

Product LineIndustrial Tools

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min

Weight45 kg

Reservoir Capacity10000 cm³

Dimension C419 mm

Dimension B158 mm

Dimension A533 mm

Output Flow Rate @ 350 bar0,57 l/min

Output Flow Rate at 50 bar5,26 in³/min

Output Flow Rate at 350 bar0,57 in³/min

Usable Oil Capacity10,0 l

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·6.2 MB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·5.0 MB 4 languages· in one file

Repair Parts SheetZE/ZW Electric PumpPDF·1.8 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB

Alternative Names & Search Terms

ZE3010NWZE 3010NWZE-3010NWze3010nwEnerpac ZE3010NWZE3010NW pumpZE3010NW electric hydraulic pumpEnerpac ZE seriesEnerpac ZE3 seriesZE series high flow pumpelectric hydraulic pump without valvehydraulic pump without electric boxelectric pump without LCD700 bar electric hydraulic pump10 litre electric hydraulic pump380-415V 3 phase hydraulic pump0.75 kW electric hydraulic pumpno valve electric pump

Cookie Notice

Enerpac ZE3010NW 700 bar Electric Pump

About This Product

Features and Benefits

Enerpac ZE3010NW

Specifications

Documents & CAD

Series documents 6· shared by this product series

Related Products

Enerpac ZPF 25 Micron Return Line Filter

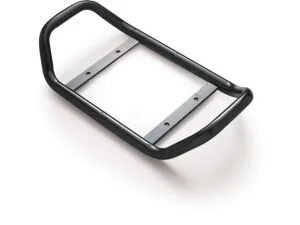

Enerpac SBZ4 Pump Skidbar
