How can I get a price quote for Enerpac ZE2208ME?

You can request a fast quote for Enerpac ZE2208ME from Yılsa Engineering. Reference part number YLS8P3F3D2W23Z6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZE2208ME in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZE2208ME genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZE2208ME?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

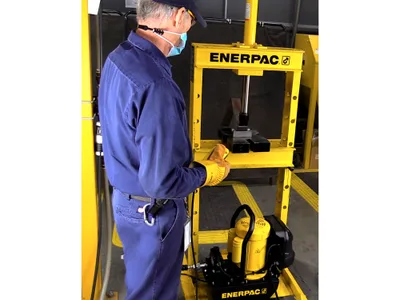

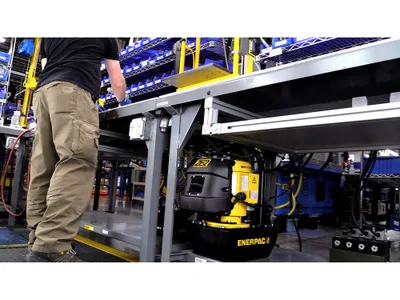

Enerpac ZE2208ME 700 bar Electric Pump

Enerpac ZE2208ME; 700 bar, 0.75 hp motor, 208-240 V with European plug, 3/2 manual valve, 6.8 L usable oil electric hydraulic pump.

EnerpacMFR # ZE2208MESKU # YLS8P3F3D2W23Z6

Output Flow Rate (No Load)2,7 l/min (200 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Valve Type and Pump Operation3-way, 2-position

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Length478 mm (18.8 in)

Have questions?Chat on WhatsApp

About This Product

Enerpac ZE2208ME is a ZE2-Series high-flow electric hydraulic pump. It runs on a 208-240 V, 1 Ph, 50/60 Hz, 0.75 hp induction motor and comes with a European plug. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is 6.8 L. The 3-way, 2-position manual valve provides advance/retract function. No-load flow is 2.7 L/min, flow at rated pressure is 0.27 L/min, and sound level is up to 79 dBA. Dimensions are 478 x 279 mm. It suits manufacturing and workshop environments for pressing, punching and similar applications.

Features and Benefits

0.75 hp induction motor for long life and quiet operation
71 to 79 dBA across the pressure range
1.8 gallon steel oil reservoir for capacity and cool operation
IP54 protection
Heavy duty bearings reduce heat and wear to extend pump life
Replaceable piston check valves increase service life

Enerpac ZE2208ME

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,7 l/min (200 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Valve Type and Pump Operation3-way, 2-position

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Length478 mm (18.8 in)

Motor Phases1 Ph

Motor Electrical Specification230 V, 1 Ph, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Maximum Flow at Rated Pressure0.27 l/min (0,27 l/m · 20 in³/min · 20 in3/min)

Valve FunctionAdvance / Retract

Motor Voltage208-240 V V

Usable Oil Capacity6,8 l (1.8 gal)

Pump ControlManual Valve

Motor Frequency50/60 Hz Hz

Reservoir Capacity8 l (2 gal)

Product TypeElectric Pump - High Flow

Reservoir Capacity8000 cm³ (462 in³)

Width279 mm (11 in)

Sound Level79 dB(A)

Valve OperationManual

Motor Size0,56 kW (0.75 hp)

SeriesZE

Pump Power SourceElectric

Cylinder CompatibilitySingle-acting

Solenoid Valve VoltageN/A

Valve ModelVM32

Product LineIndustrial Tools

Height518 mm (20.4 in)

Weight37,8 kg (83.3 lbs)

Documents & CAD

Series documents 22· shared by this product series

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·English

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.8 MB·中文

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Svenska

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Русский

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Română

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Português

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Polski

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Norsk

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Nederlands

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·13.0 MB·한국어

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Italiano

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·10.7 MB·日本語

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Français

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Suomi

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Español

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Čeština

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Deutsch

Repair Parts SheetElectric Hydraulic Pumps - ZE2-Series and ZW2-SeriesPDF·21.7 MB·English

Repair Parts SheetElectric Hydraulic Pumps - ZE2-Series and ZW2-SeriesPDF·11.2 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZE2-Series Electric Pump; EnglishPDF·312 KB
