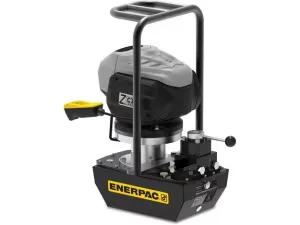

Enerpac ZC3908JE 700 bar Cordless Hydraulic Pump

Enerpac ZC3908JE; 700 bar (10,000 psi), 0.52 l/min loaded flow, 6.6 L (1.75 gal) usable oil, 4/3 valve (Advance/Hold/Retract), 82V Li-ion cordless hydraulic pump, 230V.

EnerpacMFR # ZC3908JESKU # YLSIWRQC6U7QP38

Output Flow Rate (No Load)5,08 l/min (310 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,52 l/min (32 in³/min)

Country of OriginUnited States

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

ZC3908JE is an Enerpac ZC-Series cordless hydraulic pump. It combines the performance of an electric pump with the portability of a battery pump and runs on a rechargeable 82V lithium-ion battery. Battery and charger are included; this is the 230V model. Maximum operating pressure is 700 bar (10,000 psi), loaded flow is 0.52 l/min (32 in³/min) and no-load flow is 5.08 l/min (310 in³/min). With 1.75 gal (about 6.6 L) usable oil capacity, it has a brushless 1.36 hp motor and a 3-stage pump. The valve is 4-way, 3-position, tandem center and manually operated; valve function is Advance / Hold / Retract, controlled from a pendant. It suits applications where electricity or air is not readily available and where emissions and noise are a concern. Maximum noise level is 80 dBA and duty cycle is intermittent.

Features and Benefits

Cordless design removes the need for a generator or electrical source
Brushless 1.36 hp motor and 3-stage pump minimize heat build-up and downtime
82V Li-ion battery: about 50 cycles on an RC1006 or 90 cycles on an RC504 per charge
Advance / Hold / Retract valve function on a 4-way, 3-position tandem center valve
3 m (10 ft) pendant cord for easy control
80 dBA maximum noise level; zero-emission hydraulic power pack

Enerpac ZC3908JE

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)5,08 l/min (310 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,52 l/min (32 in³/min)

Country of OriginUnited States

Maximum Flow at Rated Pressure0.52 l/min (32 in3/min · 0,52 l/min · 32 in³/min)

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Usable Oil Capacity6,6 l (1.75 gal · 404.25 in³)

Pump ControlPendant

Reservoir Capacity6,6 l (1.75 gal)

Product TypeCordless Pump - Battery

Duty CycleIntermittent

Reservoir Capacity6600 cm³ (404.25 in³)

Valve OperationManual

Pump Valve Type4-way, 3-position, Tandem Center

Motor Size1,0 kW (1.4 hp)

SeriesZC

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min (21 - 39 in³/min)

Output Flow Rate (276 bar)1,31 l/min

Output Flow Rate @ 700 bar0,52 l/min

Charger Voltage230 V

Number of Outlets2

Cylinder CompatibilityPower Seater Post-Tensioning Jack

Output Flow Rate at 4000 psi80 in³/min

Valve ModelVM43LPS

Product LineIndustrial Tools

Weight33,3 kg (73.4 lbs)

Documents & CAD

Series documents 3· shared by this product series

CertificateZC-Pump_Battery_Safety_Data_Sheet_Briggs_and_Stratton_ENPDF·223 KB·English

CertificateEC2B-ZC_RevD_Oct2022PDF·404 KB

BrochureZC-Series Cordless Battery Pumps; EnglishPDF·497 KB
