Enerpac ZC3908JB

Photo may not represent actual item. Refer to name and product specs for all details.

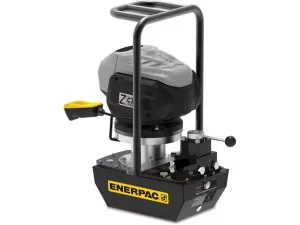

Enerpac ZC3908JB 700 bar Cordless Hydraulic Pump

Enerpac ZC3908JB; 700 bar (10,000 psi), 0.52 l/min loaded flow, 6.6 L (1.75 gal) usable oil, 4/3 valve (Advance/Hold/Retract), 82V Li-ion cordless hydraulic pump, 115V.

EnerpacMFR # ZC3908JBSKU # YLSYNSYN127SA93
Output Flow Rate (No Load)5,08 l/min (310 in³/min)
Maximum Operating Pressure Range700 bar (10,000 psi)
Output Flow Rate at Load0,52 l/min (32 in³/min)
Country of OriginUnited States
Reservoir Size Range4,0 - 7,9 l
Maximum Operating Pressure700 bar (10,000 psi)
Share

About This Product

ZC3908JB is an Enerpac ZC-Series cordless hydraulic pump. It combines the performance of an electric pump with the portability of a battery pump and runs on a rechargeable 82V lithium-ion battery. Battery and charger are included; this is the 115V model. Maximum operating pressure is 700 bar (10,000 psi), loaded flow is 0.52 l/min (32 in³/min) and no-load flow is 5.08 l/min (310 in³/min). With 1.75 gal (about 6.6 L) usable oil capacity, it has a brushless 1.36 hp motor and a 3-stage pump. The valve is 4-way, 3-position, tandem center and manually operated; valve function is Advance / Hold / Retract, controlled from a pendant. It suits applications where electricity or air is not readily available and where emissions and noise are a concern. Maximum noise level is 80 dBA and duty cycle is intermittent.

Features and Benefits

  • Cordless design removes the need for a generator or electrical source
  • Brushless 1.36 hp motor and 3-stage pump minimize heat build-up and downtime
  • 82V Li-ion battery: about 50 cycles on an RC1006 or 90 cycles on an RC504 per charge
  • Advance / Hold / Retract valve function on a 4-way, 3-position tandem center valve
  • 3 m (10 ft) pendant cord for easy control
  • 80 dBA maximum noise level; zero-emission hydraulic power pack

Enerpac ZC3908JB

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)5,08 l/min (310 in³/min)
Maximum Operating Pressure Range700 bar (10,000 psi)
Output Flow Rate at Load0,52 l/min (32 in³/min)
Country of OriginUnited States
Maximum Flow at Rated Pressure0.52 l/min (32 in3/min · 0,52 l/min · 32 in³/min)
Reservoir Size Range4,0 - 7,9 l
Maximum Operating Pressure700 bar (10,000 psi)
Valve FunctionAdvance / Hold / Retract
Usable Oil Capacity6,6 l (1.75 gal · 404.25 in³)
Pump ControlPendant
Reservoir Capacity6,6 l (1.75 gal)
Product TypeCordless Pump - Battery
Duty CycleIntermittent
Reservoir Capacity6600 cm³ (404.25 in³)
Valve OperationManual
Pump Valve Type4-way, 3-position, Tandem Center
Motor Size1,0 kW (1.4 hp)
SeriesZC
Pump Power SourceBattery
Flow Rate Range at Rated Pressure0,35 - 0,64 l/min (21 - 39 in³/min)
Output Flow Rate (276 bar)1,31 l/min
Output Flow Rate @ 700 bar0,52 l/min
Charger Voltage115 V
Number of Outlets2
Cylinder CompatibilityPower Seater Post-Tensioning Jack
Output Flow Rate at 4000 psi80 in³/min
Valve ModelVM43LPS
Product LineIndustrial Tools
Weight33,3 kg (73.4 lbs)

Documents & CAD

Series documents 3· shared by this product series

CertificateEC2B-ZC_RevD_Oct2022PDF·404 KB
BrochureZC-Series Cordless Battery Pumps; EnglishPDF·497 KB
