How can I get a price quote for Enerpac ZAJ06505S2C?

You can request a fast quote for Enerpac ZAJ06505S2C from Yılsa Engineering. Reference part number CEY-937FC77D1B0A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZAJ06505S2C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZAJ06505S2C genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZAJ06505S2C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

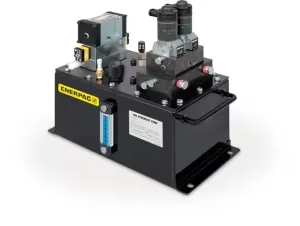

Enerpac ZAJ06505S2C 350 bar Air Pump

Enerpac ZAJ06505S2C; 350 bar, 3.8 litre usable oil, air hydraulic pump with dual 3/2 solenoid valves (24 VDC), for single- and double-acting cylinders.

EnerpacMFR # ZAJ06505S2CSKU # CEY-937FC77D1B0A

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginJapan

Oil Ports3/8" NPT

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)

Output Flow Rate (100 psi)124 in³/min

Have questions?Chat on WhatsApp

About This Product

The ZAJ06505S2C is a heavy-duty air hydraulic pump from the ZAJ series with dual 3/2 solenoid valves. The valves are 3-way, 2-position and operate on 24 VDC; the pump can be used with both single-acting and double-acting cylinders. Maximum operating pressure is 350 bar (5,000 psi) and usable oil capacity is 3.8 litres (1 gallon). Flow at 138 bar (2,000 psi) is 1.0 L/min (62 in³/min), air pressure range is 1.0–6.9 bar and air consumption is 18 scfm. Oil ports are 3/8" NPT and weight is 22.2 kg. The steel reservoir includes a sight glass and a mounting flange. The pump suits production and workholding applications.

Features and Benefits

Dual 3/2 solenoid valves (3-way, 2-position), 24 VDC
Suited for single-acting and double-acting cylinders
Heavy-duty air driven pump suited for production applications
1-gallon (3.8 L) steel reservoir with sight glass and mounting flange
350 bar (5,000 psi) maximum operating pressure, 3/8" NPT oil ports

Enerpac ZAJ06505S2C

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginJapan

Oil Ports3/8" NPT

Maximum Flow at Rated Pressure1 l/min (62 in3/min · 1,0 l/min · 62 in³/min)

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)

Output Flow Rate (100 psi)124 in³/min

Reservoir Capacity1 gal

Product TypeAir Pump

Reservoir Capacity3800 cm³ (231 in³)

Output Flow Rate at 2000 psi62 in³/min

Valve OperationSolenoid

Pump Valve Type3-way, 2-position

SeriesZAJ

Pump Power SourceAir

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (60 - 119 in³/min)

Cylinder CompatibilitySingle-acting, Double-Acting

Air Consumption510 l/min (18 scfm)

Solenoid Valve Voltage24 VDC

Product LineWorkholding Tools

Weight22,2 kg (49 lbs)

Usable Oil Capacity3,8 l

Documents & CAD

Series documents 3· shared by this product series

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB
