How can I get a price quote for Enerpac XC2502BE?

You can request a fast quote for Enerpac XC2502BE from Yılsa Engineering. Reference part number YLSOAO1X9RCEDBT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XC2502BE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XC2502BE genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XC2502BE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

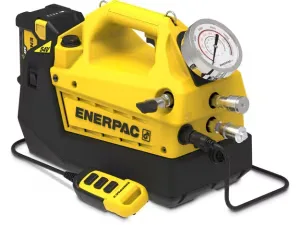

Enerpac XC2502BE 700 bar Cordless Torque Wrench Pump

Enerpac XC2502BE; 700 bar (10,000 psi), 0.33 l/min rated flow, 122 in³ usable oil, 4/2 valve cordless hydraulic torque wrench pump; 2 batteries and 230V charger included.

EnerpacMFR # XC2502BESKU # YLSOAO1X9RCEDBT

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length518 mm (20.4 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeBattery Pump - Torque Wrench

Have questions?Chat on WhatsApp

About This Product

XC2502BE is an XC2T-series cordless hydraulic torque wrench pump. It has a 4-way, 2-position solenoid valve and a maximum operating pressure of 700 bar (10,000 psi). Flow at rated pressure is 0.33 l/min (20 in³/min) and no-load flow is 2.60 l/min (160 in³/min). Usable oil capacity is 122 in³ (about 2.0 l) and motor size is 0.94 hp. It is supplied as a kit with 2 batteries and a 230V charger (Europe). The pendant control is detachable, so the pump can also be run from its trigger in confined spaces. Dimensions are 518 x 241 mm and the weight range is 15.1 - 24.9 kg. It is used to power hydraulic torque wrenches in bolting applications where a power supply is not available or extension cords create safety or mobility issues.

Features and Benefits

Supplied as a kit with 2 batteries and a 230V charger (Europe)
20 ft (about 6 m) detachable pendant control
4 inch (about 100 mm) glycerine-filled gauge for easy viewing
Adjustable pressure relief valve can be locked once the desired pressure is set
High-performance brushless motor provides twice the life of brushed motors
Bladder reservoir reduces contamination and allows use in any position

Enerpac XC2502BE

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length518 mm (20.4 in)

Maximum Flow at Rated Pressure0,33 l/min (20 in3/min · 0,33 l/min · 20 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Pump TypeCordless Pump Kit with 2 batteries and 230V charger (Europe)

Product TypeBattery Pump - Torque Wrench

Reservoir Capacity134 in³

Width241 mm (9.5 in)

Valve OperationSolenoid

Pump Valve Type4-way, 2-position

Motor Size0,70 kW (0.94 hp)

SeriesXC2T

Output Flow Rate @ 10,000 psi20 in³/min

Usable Oil Capacity2,0 l (122 in³)

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

For Use With Torque WrenchesAll Series torque wrenches

Model Type4/2 Valve, 122 in3 Capacity, Batteries and Charger Included, 230V, Europe

Charger Voltage230 V

Product LineBolting Tools

Height307 mm (12.1 in)

Weight15,2 kg (33.6 lbs)

Reservoir Capacity2,0 l

Set IncludesEBH544K,EC1F542E,CC132

Documents & CAD

For this product 1

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·41.2 MB·English

Series documents 19· shared by this product series

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Svenska

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.3 MB·中文

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Português

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Nederlands

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Română

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Polski

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Norsk

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.2 MB·日本語

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.1 MB·한국어

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Italiano

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Español

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Français

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Suomi

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·15.9 MB·Čeština

Instruction ManualXC2 Series Cordless Hydraulic Bolting Pumps, Models XC2502B and XC2504BPDF·16.0 MB·Deutsch

CertificatePumps that include 54V Lithium Ion Battery Safety Data SheetPDF·1.7 MB·English

CertificateEBH544 Safety Data SheetPDF·217 KB·English

CertificateEC2A-BATTERYPUMPS-XC2_RevB_Apr2023PDF·419 KB

BrochureXC2-Series_Cordless_Battery_Torque_Pumps_EN-USPDF·1.0 MB

Alternative Names & Search Terms

XC2502BEXC-2502BEXC 2502BEXC2502-BEXC2502 BEEnerpac XC2502BEEnerpac XC-2502BEXC2502BE cordless torque pumpXC2502BE hydraulic pumpEnerpac XC2T seriesEnerpac XC2 torque pumpcordless hydraulic torque wrench pumpEnerpac cordless torque pump700 bar cordless torque pump10,000 psi cordless hydraulic pump4/2 valve cordless pumpsolenoid valve cordless pumppendant control cordless pumpcordless torque pump with 230V chargercordless pump kit with 2 batteriesbattery hydraulic pump for bolting
