How can I get a price quote for Enerpac XC2402ME?

You can request a fast quote for Enerpac XC2402ME from Yılsa Engineering. Reference part number YLS6XPD3SEUXGOL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XC2402ME in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XC2402ME genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XC2402ME?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

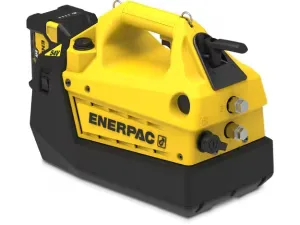

Enerpac XC2402ME 700 bar Cordless Hydraulic Pump

Enerpac XC2402ME; 700 bar (10,000 psi), 0.33 l/min rated flow, 122 in³ usable oil, 4/3 manual valve cordless hydraulic pump; batteries and 230V charger included.

EnerpacMFR # XC2402MESKU # YLS6XPD3SEUXGOL

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

Have questions?Chat on WhatsApp

About This Product

XC2402ME is an XC2-series cordless hydraulic pump. It has a 4-way, 3-position manual valve and a maximum operating pressure of 700 bar (10,000 psi). Flow at rated pressure is 0.33 l/min (20 in³/min) and no-load flow is 2.60 l/min (160 in³/min). Usable oil capacity is 122 in³ (about 2.0 l) and motor size is 0.94 hp. The pump runs on the 54 V battery system. Batteries and a 230V charger are included. Dimensions are 467 x 224 mm. The weight range across the series is 7 - 15 kg. Manual valve models have a variable speed trigger. It is suited to operating hydraulic cylinders and tools in the field or in a facility where mains power or a generator is not available.

Features and Benefits

Cordless operation removes the need for extension cords and noise- and emission-producing generators
High-performance brushless motor provides twice the life of brushed motors
Bladder reservoir reduces contamination and allows pump use in any position
Variable speed trigger on manual valve models gives finer control of cylinder or tool advance
Accessory shoulder strap SSTRP55 attaches to integrated steel rings for easier carrying
Compatible with the Enerpac Connect App

Enerpac XC2402ME

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Flow at Rated Pressure0,33 l/min (20 in3/min · 0,33 l/min · 20 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

SeriesXC2-Series Cordless Hydraulic Pumps (XC2)

Reservoir Capacity134 in³

Width224 mm (8.8 in)

Valve OperationManual

Pump Valve Type4-way, 3-position

Motor Size0,70 kW (0.94 hp)

Output Flow Rate @ 10,000 psi20 in³/min

Usable Oil Capacity2,0 l (122 in³)

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type4/3 Manual Valve, 122 in3 Capacity, Batteries and Charger Included, 230V, Europe

Charger Voltage230 V

Cylinder CompatibilityDouble-acting

Product LineIndustrial Tools

Height307 mm (12.1 in)

Weight12,8 kg (28.3 lbs)

Reservoir Capacity2,0 l

Set IncludesEBH544K,EC1F542E,SSTRP55

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualFirmware Update InstructionsPDF·1.3 MB·English

CertificatePumps that include 54V Lithium Ion Battery Safety Data SheetPDF·1.7 MB·English

CertificateEBH544 Safety Data SheetPDF·217 KB·English

CertificateEC2A-BATTERYPUMPS-XC2_RevB_Apr2023PDF·419 KB

BrochureXC2-Series_Cordless_Battery_Pumps_EN-GBPDF·543 KB
