How can I get a price quote for Enerpac XC2402MB?

You can request a fast quote for Enerpac XC2402MB from Yılsa Engineering. Reference part number YLSMREUAO6FH7TV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XC2402MB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XC2402MB genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XC2402MB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

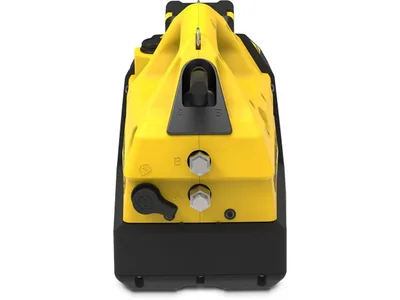

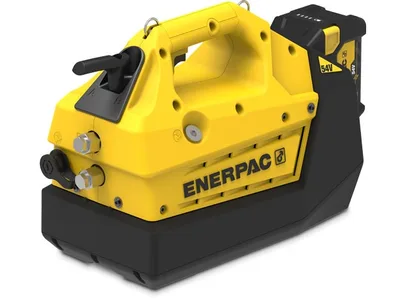

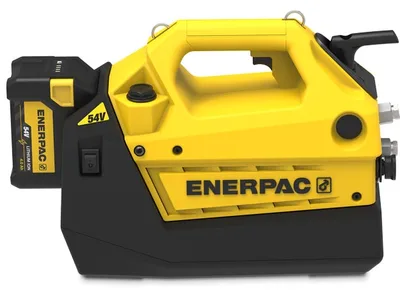

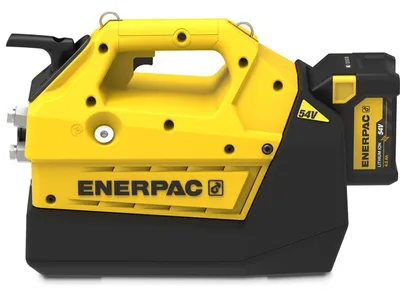

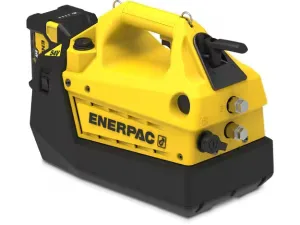

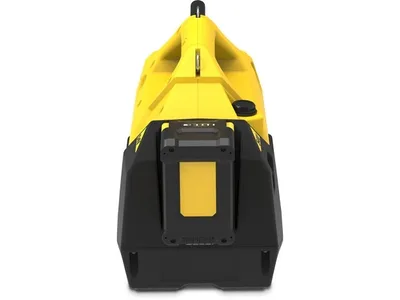

Enerpac XC2402MB 700 bar cordless hydraulic pump

Enerpac XC2402MB; 700 bar (10,000 psi), 4/3 manual valve, 122 in³ (about 2.0 L) usable oil, 54 V cordless hydraulic pump; batteries and charger included.

EnerpacMFR # XC2402MBSKU # YLSMREUAO6FH7TV

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

Have questions?Chat on WhatsApp

About This Product

XC2402MB is a cordless hydraulic pump from the XC2 series. It provides 700 bar (10,000 psi) maximum operating pressure, a 4-way, 3-position manual valve and 122 in³ (about 2.0 L) usable oil capacity. Reservoir capacity is 134 in³. The pump runs on a 54 V / 4 Ah battery system with a 0.94 hp (about 0.7 kW) brushless motor. Flow at rated pressure is 0.33 L/min (20 in³/min) and no-load flow is 2.60 L/min. Dimensions are 467 x 224 mm; batteries and charger are included, with a 115 V charger. Being cordless, it is used in the field or in a facility with cylinders and hydraulic tools for lifting, pushing, pulling, splitting and cutting, without extension cords or generators.

Features and Benefits

Cordless operation eliminates extension cords and noisy, emitting generators
Brushless motor delivers high flow and twice the life of brushed motors
Bladder reservoir reduces contamination and allows use in any position
4/3 manual valve with variable speed trigger for precise control
122 in³ usable oil for larger and multiple cylinders
Compatible with the Enerpac Connect app and optional SSTRP55 shoulder strap

Enerpac XC2402MB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Flow at Rated Pressure0,33 l/min (20 in3/min · 0,33 l/min · 20 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

SeriesXC2-Series Cordless Hydraulic Pumps

Reservoir Capacity134 in³

Width224 mm (8.8 in)

Valve OperationManual

Pump Valve Type4-way, 3-position

Motor Size0,70 kW (0.94 hp)

Output Flow Rate @ 10,000 psi20 in³/min

Usable Oil Capacity2,0 l (122 in³)

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type4/3 Manual Valve, 122 in3 Capacity, Batteries and Charger Included, 115V

Charger Voltage115 V

Cylinder CompatibilityDouble-acting

Product LineIndustrial Tools

Height307 mm (12.1 in)

Weight12,8 kg (28.3 lbs)

Reservoir Capacity2,0 l

Set IncludesEBH544K,EC1F541B,SSTRP55

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualFirmware Update InstructionsPDF·1.3 MB·English

CertificatePumps that include 54V Lithium Ion Battery Safety Data SheetPDF·1.7 MB·English

CertificateEBH544 Safety Data SheetPDF·217 KB·English

CertificateEC2A-BATTERYPUMPS-XC2_RevB_Apr2023PDF·419 KB

BrochureXC2-Series_Cordless_Battery_Pumps_EN-GBPDF·543 KB
