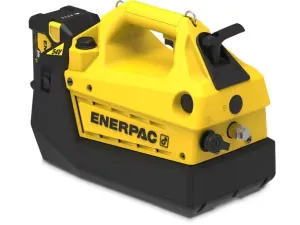

Enerpac XC2204MB 700 bar Cordless Hydraulic Pump

Enerpac XC2204MB; 700 bar (10,000 psi), 241 in³ (≈4 L) usable oil, cordless hydraulic pump with 3/2 manual valve; batteries and charger included, 115V.

EnerpacMFR # XC2204MBSKU # YLSQNSGXOZRAV9O

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

Have questions?Chat on WhatsApp

About This Product

XC2204MB is an XC2 series cordless hydraulic pump. Its maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is 241 in³ (≈4 L). It has a 3-way, 2-position manual valve. With a 0.70 kW (0.94 hp) motor, the pump delivers 2.60 L/min at no load and 0.33 L/min under load. It measures 467 mm in length and 224 mm in width. It comes with a 54 V / 4 Ah battery and a 115V charger; the bundle includes EBH544K, EC1F541B and SSTRP55. Its larger oil capacity suits cordless use with larger or multiple cylinders.

Features and Benefits

54 V / 4 Ah battery and 115V charger included
1 gallon (≈4 L) oil capacity enables use with larger and multiple cylinders
Brushless motor drives high flow rates and provides twice the life of brushed motors
Bladder reservoir reduces contamination and allows use in any position
Variable speed trigger on manual valve models for greater control
SSTRP55 shoulder strap for enhanced portability

Enerpac XC2204MB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,60 l/min (160 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,33 l/min (20 in³/min)

Length467 mm (18.4 in)

Maximum Flow at Rated Pressure0,33 l/min (20 in3/min · 0,33 l/min · 20 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCordless Pump - Battery

SeriesXC2-Series Cordless Hydraulic Pumps (XC2)

Reservoir Capacity256 in³

Width224 mm (8.8 in)

Valve OperationManual

Pump Valve Type3-way, 2-position

Motor Size0,70 kW (0.94 hp)

Output Flow Rate @ 10,000 psi20 in³/min

Usable Oil Capacity4,0 l (241 in³)

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type3/2 Manual Valve, 241 in3 Capacity, Batteries and Charger Included, 115V

Charger Voltage115 V

Cylinder CompatibilitySingle-acting

Product LineIndustrial Tools

Height307 mm (12.1 in)

Weight13,5 kg (29.8 lbs)

Reservoir Capacity4,0 l

Set IncludesEBH544K,EC1F541B,SSTRP55

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualFirmware Update InstructionsPDF·1.3 MB·English

CertificatePumps that include 54V Lithium Ion Battery Safety Data SheetPDF·1.7 MB·English

CertificateEBH544 Safety Data SheetPDF·217 KB·English

CertificateEC2A-BATTERYPUMPS-XC2_RevB_Apr2023PDF·419 KB

BrochureXC2-Series_Cordless_Battery_Pumps_EN-GBPDF·543 KB
