How can I get a price quote for Enerpac WUD1100B?

You can request a fast quote for Enerpac WUD1100B from Yılsa Engineering. Reference part number CEY-55221B11A24E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac WUD1100B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac WUD1100B genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac WUD1100B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

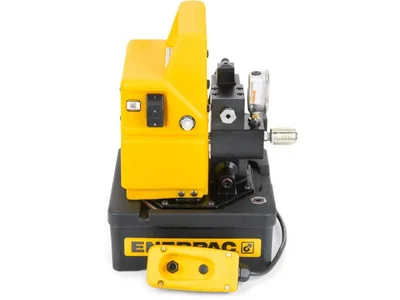

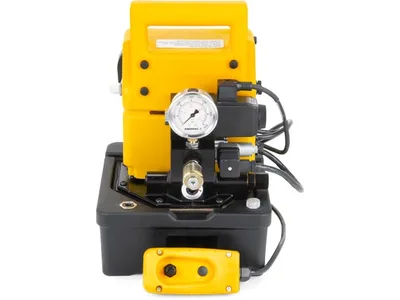

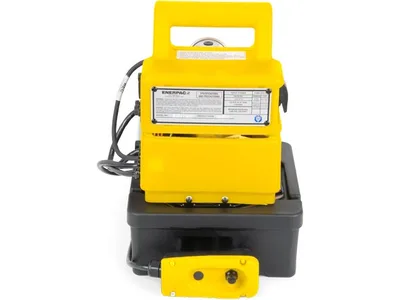

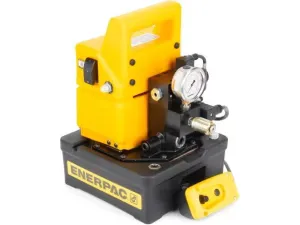

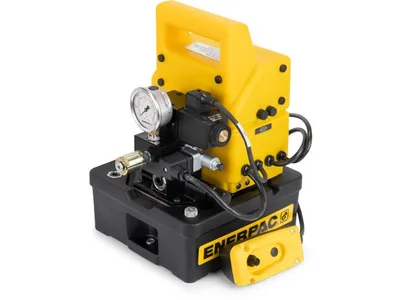

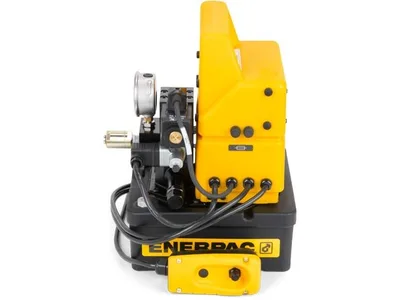

Enerpac WUD1100B 350 bar Electric Pump

Enerpac WUD1100B; 350 bar (5,000 psi), 0.5 gallon usable oil, 115 V single-phase economy electric hydraulic pump with dump valve.

EnerpacMFR # WUD1100BSKU # CEY-55221B11A24E

Dimension E120 mm (4.72 in)

Maximum Operating Pressure Range350 bar (5,000 psi)

Oil Flow Rate 1st Stage200 in³/min

Country of OriginUnited States

2nd Stage Pressure Rating350 bar (5,000 psi)

Motor Phases1 Ph

Have questions?Chat on WhatsApp

About This Product

WUD1100B is a lightweight, compact economy electric hydraulic pump suited to powering small to medium size fixtures. Maximum operating pressure is 350 bar (5,000 psi), usable oil capacity is 0.5 gallon and reservoir capacity is 116 in³. The motor is 115 V, 1 phase, 50/60 Hz. It operates in two stages: 200 in³/min up to 200 psi in the first stage and 0.33 l/min at rated pressure in the second stage. The valve function is advance/retract, providing advance and auto-retract of single-acting cylinders. It is used with AP500 in workholding applications.

Features and Benefits

Provides advance/auto-retract of single-acting cylinders
Lightweight and compact design with a large carry handle for easy transport
Two-speed operation reduces cycle times
10-ft (3 m) pendant controls motor and valve; 24 VDC remote motor control
Starts under full load; universal motor works well on long extension cords
For use with AP500

Enerpac WUD1100B

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E120 mm (4.72 in)

Maximum Operating Pressure Range350 bar (5,000 psi)

Oil Flow Rate 1st Stage200 in³/min

Country of OriginUnited States

2nd Stage Pressure Rating350 bar (5,000 psi)

Motor Phases1 Ph

Dimension F203 mm (8 in)

Dimension D102 mm (4 in)

Maximum Flow at Rated Pressure0.33 l/min (25 in3/min · 0,33 l/min · 25 in³/min)

Dimension C362 mm (14.25 in)

Motor Electrical Specification115 V, 1 Ph, 50/60 Hz

Maximum Operating Pressure350 bar (5,000 psi)

Valve FunctionAdvance / Retract

Dimension B244 mm (9.62 in)

Output Flow Rate 2nd Stage0,33 l/min

Motor Voltage115 V V

Usable Oil Capacity1,9 l (0.5 gal)

Dimension J133 mm (5.25 in)

Dimension H10 mm (0.4 in)

Motor Frequency50/60 Hz Hz

1st Stage Pressure Rating14 bar (200 psi)

Product TypeElectric Pump - Economy

Reservoir Capacity1900 cm³ (116 in³)

Sound Level85 dB(A)

Motor Size0.5 hp

SeriesWU

Pump Power SourceElectric

Output Flow Rate 1st Stage3,28 l/min

Flow Rate Range at Rated Pressure0 - 0,34 l/min (21 - 39 in³/min)

Pump OperationDump

Current Draw9.5 A

Cylinder CompatibilitySingle-acting

Dimension A244 mm (9.62 in)

Product LineWorkholding Tools

Weight11,8 kg (26 lbs)

Oil Flow Rate 2nd Stage25 in³/min

Documents & CAD

For this product 1

Instruction ManualWU Series Workholding Economy Electric PumpsPDF·9.3 MB 4 languages· in one file

Series documents 6· shared by this product series

Repair Parts SheetWUD 1100 Series Auto-Dump Electric PumpsPDF·720 KB·English

Repair Parts SheetWUD 1100 Series Workholding Economy Electric PumpsPDF·791 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-ECONOMY_RevL_Oct2022PDF·474 KB

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB

Alternative Names & Search Terms

WUD1100BWUD-1100BWUD 1100Bwud1100bEnerpac WUD1100BEnerpac WUD-1100BWUD1100B pumpWUD1100B electric hydraulic pumpEnerpac WU serieseconomy electric hydraulic pump350 bar electric hydraulic pump115 V electric hydraulic pump0.5 gallon hydraulic pumpelectric pump for single-acting cylindersworkholding hydraulic pumpfixture hydraulic pumppump for use with AP500electric pump with dump valvetwo-stage electric hydraulic pumpportable electric hydraulic pump
