Enerpac WTR24

Photo may not represent actual item. Refer to name and product specs for all details.

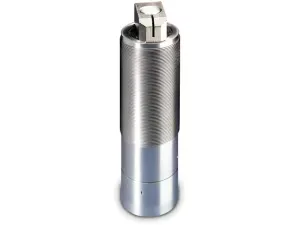

Enerpac WTR24 22.2 kN Swing Cylinder

Enerpac WTR24; 22.2 kN clamping force, 63.5 mm stroke, 350 bar max pressure, three position swing cylinder.

EnerpacMFR # WTR24SKU # CEY-7B4B2D993726
Maximum Operating Pressure350 bar (5000 psi)
Cylinder Effective Area (Unclamp)1.77 in²
Minimum Operating Pressure140 bar (2000 psi)
Product TypeSwing Cylinder
SeriesWTR
Cylinder Effective Area (Clamp)6,3 cm² (0.98 in²)
Share
Have questions?Chat on WhatsApp

About This Product

The Enerpac WTR24 is a three-position hydraulic swing cylinder engineered for workholding applications requiring unobstructed part loading, particularly components with through-holes. Operating at up to 350 bar (5000 psi), it delivers a clamping force of 22.2 kN (5000 lbs) with a stroke of 63.5 mm (2.5 in). The plunger rotates 90 degrees only after fully extending, allowing fixture mounting beneath the workpiece where the clamp can pass through the part to clamp securely. Featuring a stainless steel body for enhanced corrosion resistance, a fully threaded outer body for flexible installation, and a three-port design for reduced plumbing, it comes equipped with a standard two-sided clamp arm.

Features and Benefits

  • Plunger rotates only when fully extended, ensuring unobstructed workpiece loading
  • Ideal for under-fixture mounting, clamping through workpiece through-holes
  • Stainless steel body for corrosion resistance with a fully threaded body for flexible installation
  • 22.2 kN clamping force and 63.5 mm stroke at up to 350 bar operating pressure
  • Three-port design for simplified piping, complete with standard two-sided clamp arm

Enerpac WTR24

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure350 bar (5000 psi)
Cylinder Effective Area (Unclamp)1.77 in²
Minimum Operating Pressure140 bar (2000 psi)
Product TypeSwing Cylinder
SeriesWTR
Cylinder Effective Area (Clamp)6,3 cm² (0.98 in²)
Oil Capacity (Unclamp)4.4 in³
Product LineWorkholding Tools
Country of OriginUnited States
Oil Capacity (Unclamp)72,1 cm³
Max. Oil Flow116 in³/min
Cylinder Effective Area (Unclamp)11,4 cm²
Maximum Oil Flow1,9 l/min
Stroke63,5 mm (2.5 in)
Oil Capacity (Clamp)41,0 cm³ (2.5 in³)
Clamping Force22,2 kN (5000 lbs)

Documents & CAD

For this product 4

Instruction ManualClamp - SwingPDF·1.0 MB·English
Repair Parts SheetCylinder, SwingPDF·145 KB·English
Repair Parts SheetCylinderPDF·64 KB·English
BrochureWorkholding Swing ClampsPDF·177 KB·English

CAD Files 3
