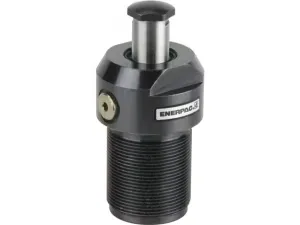

Enerpac WST72 7.3 kN Work Support
Enerpac WST72; 7.3 kN support force, 9.7 mm stroke, 350 bar max pressure, spring advance threaded body work support.
Dimension W41,9 mm
Country of OriginUnited States
Dimension F13,0 mm
Plunger Contact Spring Force (Advance)8,9 N
Maximum Operating Pressure350 bar
Capacity7,3 kN
About This Product
WST72 is a spring advance, threaded body work support from the WST series. It provides a maximum support force of 7.3 kN and a 9.7 mm stroke. Operating pressure ranges from 48 bar to 350 bar.
The body thread is M35 x 1.5 and the air vent port is M10 x 1.5. Oil capacity is 0.66 cm³, maximum oil flow is 0.7 L/min and weight is 0.2 kg.
It supports the workpiece in fixtures to reduce deflection during machining.
Features and Benefits
- 7.3 kN maximum support force
- 9.7 mm stroke with spring advance
- Operating pressure 48–350 bar
- M35 x 1.5 threaded body for simple mounting
- Compact design: 0.2 kg, 0.66 cm³ oil capacity
Enerpac WST72
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension W41,9 mm
Country of OriginUnited States
Dimension F13,0 mm
Plunger Contact Spring Force (Advance)8,9 N
Maximum Operating Pressure350 bar
Capacity7,3 kN
Dimension E15,0 mm
ApplicationsHold
Dimension DM35 x 1,5 mm
Dimension KM10 x 1,5 mm
Work Support Mounting StyleThreaded Body
Product TypeSpring Advance - Threaded Body
Max. Support Force7,3 kN
SeriesWST
Dimension C126,2 mm
Oil Capacity0,66 cm³
Dimension N13,0 mm
Maximum Oil Flow0,7 l/min
Plunger Spring Retract Force25,8 N
Dimension M34,0 mm
Dimension L4,6 mm
Stroke9.7 mm
Minimum Operating Pressure48 bar
Product LineWorkholding Tools
Weight0,2 kg
Dimension B79,5 mm
Dimension D143,6ø mm
Dimension A89,2 mm
