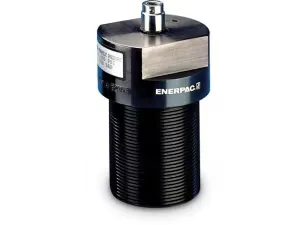

Enerpac WPTS200V

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac WPTS200V 4,000 lbs Collet-Lok Work Support

Enerpac WPTS200V; 4,000 lbs (1,814 kg) capacity, 0.39 in (10 mm) stroke, 345 bar (5,000 psi) max pressure, Collet-Lok threaded body work support.

EnerpacMFR # WPTS200VSKU # YLSJ55MKQZWZE2X
Country of OriginNetherlands
Dimension D3.125-16 in
Dimension W2.64 mm
Dimension C4.13 in
Dimension P0.26 in
Dimension B4.53 in
Share
Have questions?Chat on WhatsApp

About This Product

WPTS200V is a hydraulic work support from the WPTS series with a Collet-Lok design and threaded body. Its maximum support force is 4,000 lbs (approx. 1,814 kg / 17.8 kN) and its stroke is 0.39 in (approx. 10 mm). The operating pressure range is 1,450 psi (approx. 100 bar) to 5,000 psi (approx. 345 bar). The body mounting thread is 3.125-16 and the weight is approx. 4 kg (8.8 lbs). The Collet-Lok design maintains the support position after hydraulic pressure is removed. It is used to support parts in workholding applications.

Features and Benefits

  • Collet-Lok design maintains support position after hydraulic pressure is removed
  • Higher level of safety, as it does not depend on hydraulic supply pressure
  • Low deflection: lowest deflection of any work support available
  • Threaded body increases mounting flexibility
  • 4,000 lbs (approx. 17.8 kN) support force, 10 mm (0.39 in) stroke

Enerpac WPTS200V

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Country of OriginNetherlands
Dimension D3.125-16 in
Dimension W2.64 mm
Dimension C4.13 in
Dimension P0.26 in
Dimension B4.53 in
Max. Oil Flow60 in³/min
ApplicationsHold
Minimum Operating Pressure1,450 psi
Work Support Mounting StyleThreaded Body
Dimension H0.61 in
Product TypeCollet Lok - Threaded Body
Dimension L0.79 in
Dimension M0.79 in
Dimension F2.76 in
Maximum Operating Pressure5,000 psi
SeriesWPTS
Dimension D13.73 in
Stroke0.39 in
Max. Support Force4,000 lbs
Dimension K.500-20 UNF in
Dimension C11.5 in
Locking System Displacement (Unlock)0.37 in³
Dimension A4.92 in
Product LineWorkholding Tools
Weight8.8 lbs
Dimension SØ.11 in
Plunger Contact Spring Force (Advance)6.74 lbs
Locking System Displacement (Lock)0.37 in³/min

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualCollet Lock Work Support Cylinders 100-350 bar, 1050-5075 psiPDF·426 KB·English
Repair Parts SheetCollet-lok Work SupportsPDF·896 KB·English
Repair Parts SheetCollet-lokPDF·45 KB·English
BrochureWorkholding Collet-Lok® Cylinders, EnglishPDF·3.7 MB
