How can I get a price quote for Enerpac WMT40?

You can request a fast quote for Enerpac WMT40 from Yılsa Engineering. Reference part number CEY-7B4B2D9927C8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac WMT40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac WMT40 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac WMT40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

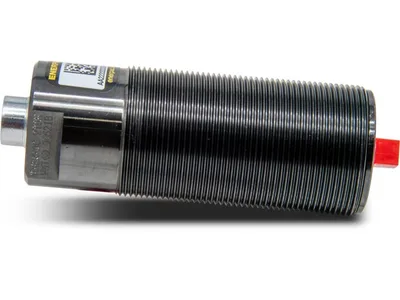

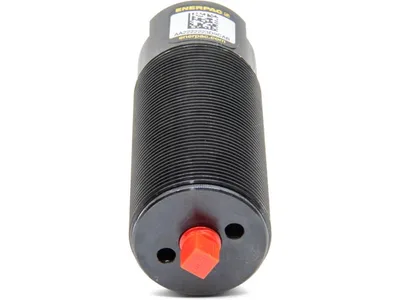

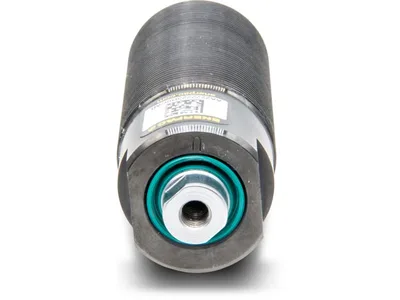

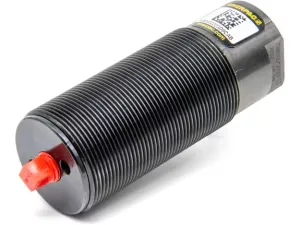

Enerpac WMT40 17.3 kN Double-Acting Threaded Cylinder

Enerpac WMT40; 17.3 kN (3900 lbs) push force, 25 mm stroke, 350 bar max pressure, double-acting threaded body hydraulic cylinder.

EnerpacMFR # WMT40SKU # CEY-7B4B2D9927C8

Dimension G1/8" NPT mm (.125-27 NPT in)

Dimension E14,2 mm (0.56 in)

Oil Capacity (Advance)12,95 cm³ (0.79 in³)

Maximum Cylinder Capacity (Retract)12,0 kN (2700 lbs)

Dimension C88,9 mm (3.5 in)

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

WMT40 is a double-acting, threaded body hydraulic cylinder from the Enerpac WMT workholding range. It offers a 0.98 in (about 25 mm) stroke and is used for push and pull applications. It delivers 17.3 kN (3900 lbs) on advance and 12.0 kN (2700 lbs) on retract. Maximum operating pressure is 350 bar (5,000 psi) and minimum operating pressure is 150 psi. Body thread is 1.375-18 UNEF, oil port is 1/8" NPT, overall length is 120.9 mm and weight is about 0.54 kg. Its threaded body allows precise positioning and easy installation in fixtures, jigs and automated clamping systems.

Features and Benefits

Maximum clamping force in a compact design
Threaded body allows exact positioning and easy installation
Double-acting design suits powered pulling and fast automated control
Used when timing sequences are critical
Less sensitive to system back pressures
Center-tapped plungers allow a variety of attachments

Enerpac WMT40

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G1/8" NPT mm (.125-27 NPT in)

Dimension E14,2 mm (0.56 in)

Oil Capacity (Advance)12,95 cm³ (0.79 in³)

Maximum Cylinder Capacity (Retract)12,0 kN (2700 lbs)

Dimension C88,9 mm (3.5 in)

Maximum Operating Pressure350 bar (5,000 psi)

Oil Capacity (Retract)8,85 cm³ (0.54 in³)

Dimension T9,9 mm (0.39 in)

ApplicationsPush, Pull

Dimension K.250-28 mm

Minimum Operating Pressure10 bar (150 psi)

Product TypeWorkholding Threaded Cylinder

SeriesWMT

Dimension J65,0 mm (2.56 in)

Product LineWorkholding Tools

Weight0,5 kg (1.2 lbs)

Dimension D133,0 mm (1.3 in)

Dimension A120,9 mm

Maximum Cylinder Capacity (Advance)3900 lbs

Country of OriginNetherlands

Dimension F26,9 mm (1.06 in)

Dimension D1.375-18 UNEF

Cylinder Effective Area (Advance)5,1 cm² (0.79 in²)

Cylinder Effective Area (Retract)3,48 cm²

Dimension B96,0 mm (3.78 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)0.54 in²

Collapsed Height (A)4.76 in

Cylinder MaterialSteel

Dimension H18,5 mm (0.73 in)

Maximum Cylinder Capacity (Advance)17,4 kN

Stroke24.9 mm (0.98 in)

Dimension S11,9 mm (0.47 in)

Return TypeDouble-Acting, Hydraulic Return

Operating Pressure150 - 5000 psi

Documents & CAD

For this product 2

Instruction ManualClamping CylindersPDF·162 KB·English

Repair Parts SheetCylinderPDF·345 KB·English

Series documents 1· shared by this product series

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
