How can I get a price quote for Enerpac WHC1250?

You can request a fast quote for Enerpac WHC1250 from Yılsa Engineering. Reference part number CEY-937FC77BF5A7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac WHC1250 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac WHC1250 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac WHC1250?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

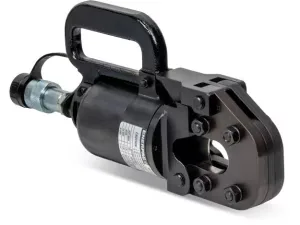

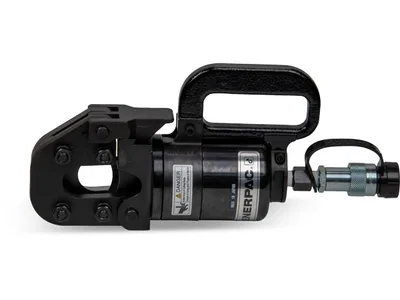

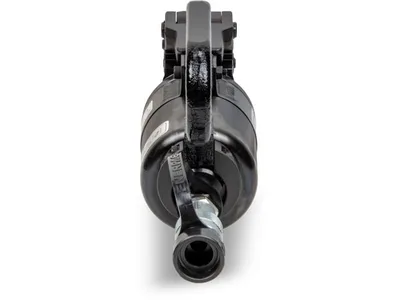

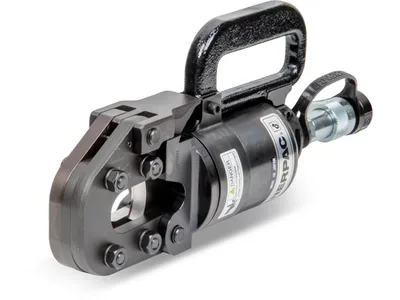

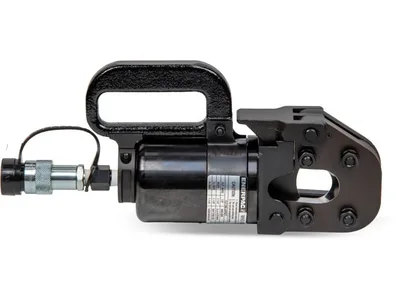

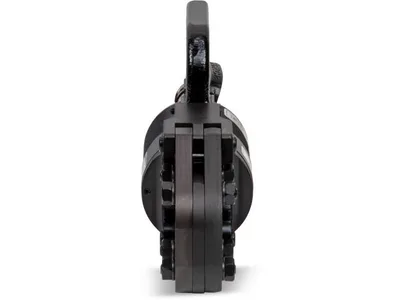

Enerpac WHC1250 20 ton hydraulic cutterhead

Enerpac WHC1250; 20 ton capacity, 700 bar (10,000 psi) maximum pressure, single-acting spring-return hydraulic cutterhead.

EnerpacMFR # WHC1250SKU # CEY-937FC77BF5A7

Telephone Cable (CPP) Cutting CapacityWill not cut

Country of OriginJapan

Guy Steel Wire Strands Cutting Capacity22 mm (0.88 in)

Length355,6 mm (279 mm · 14 in · 11 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsCut

Have questions?Chat on WhatsApp

About This Product

WHC1250 is a 20 ton single-acting, spring-return hydraulic cutterhead from the WHC series. Maximum operating pressure is 700 bar (10,000 psi) and oil capacity is 134.4 cm³. Dimensions are 355.6 x 89.9 x 176.5 mm (L x W x H). Cutting capacity: guy steel wire strand 22 mm (0.88 in), reinforcing bar 1 in (25.4 mm), and copper wire/bar, soft steel bolts, bare aluminum and ACSR strands up to 1.25 in (31.8 mm). It will not cut telephone cable (CPP) or underground power cable. The set includes a CR400 coupler; country of origin is Japan.

Features and Benefits

Rotating head for operator convenience
Guillotine action for efficient operation
Carrying bag included for easy carrying and tool protection
Spring return on all models
Lightweight, self-contained tool that can be used anywhere

Enerpac WHC1250

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Telephone Cable (CPP) Cutting CapacityWill not cut

Country of OriginJapan

Guy Steel Wire Strands Cutting Capacity22 mm (0.88 in)

Length355,6 mm (279 mm · 14 in · 11 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsCut

Reinforcing Bar Cutting Capacity1 in

Copper Wire or Bar Cutting Capacity1.25 in

Oil Capacity134,4 cm³ (8.2 in³)

Bare Aluminum Wire Strands Cutting Capacity1.25 in

Product TypeCutterhead

Width89,9 mm (3.54 in)

ACSR Cutting Capacity1.25 in

Underground Power Cable Cutting CapacityWill not cut

SeriesWHC

Bare Copper Wire Strands Cutting Capacity1.25 in

Soft Steel Bolts Cutting Capacity1.25 in

Capacity20 ton

Cutter Head Return TypeSingle-Acting, Spring Return

Product LineIndustrial Tools

Height176,5 mm (6.95 in)

Weight11,3 kg (25 lbs)

Steel Wire Rope Cutting Capacity (Hemp Core/IWRC)1.25 in

Aluminum Wire or Bar Cutting Capacity1.25 in

Wire Strand / ACSR Cutting Capacity31 mm

Set IncludesCR400

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic Cutters, WHC, WMC & WHR SeriesPDF·279 KB·English

Repair Parts SheetCutter - HydraulicPDF·53 KB·English

CertificateEC2B-WHC-WMC_RevC_Oct2022PDF·396 KB

CertificateEC2A-HYDCUTTERS_RevB_Oct2022PDF·396 KB

BrochureHydraulic Electric Manual Cutters; EnglishPDF·5.6 MB
