How can I get a price quote for Enerpac WFL222?

You can request a fast quote for Enerpac WFL222 from Yılsa Engineering. Reference part number CEY-0681555D7C89. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac WFL222 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac WFL222 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac WFL222?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

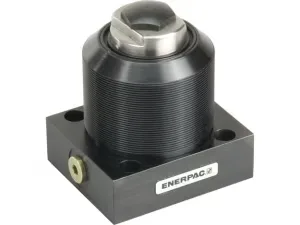

Enerpac WFL222 22.2 kN Work Support

Enerpac WFL222; 22.2 kN support force, 10.4 mm stroke, 350 bar maximum operating pressure, lower flange hydraulic advance work support.

EnerpacMFR # WFL222SKU # CEY-0681555D7C89

Country of OriginUnited States

Dimension H114,0 mm

Dimension F25,4 mm

Dimension U255,6 mm

Dimension H213,2 mm

Plunger Contact Spring Force (Advance)9,3 N

Have questions?Chat on WhatsApp

About This Product

WFL222 is a lower flange, hydraulic advance work support from the Enerpac WFL series. It provides a maximum support force of 22.2 kN and a 10.4 mm stroke, with a maximum operating pressure of 350 bar. Technical data includes 3.11 cm³ oil capacity, 3.1 L/min maximum oil flow, an M68 x 1.5 body thread, an M20 x 2.5 contact bolt thread and an ARP-017 manifold O-ring. Plunger advance spring force is 9.3 N and retract spring force is 86.8 N. It is used in workholding fixtures to support the workpiece during machining.

Features and Benefits

22.2 kN maximum support force
10.4 mm stroke with hydraulic advance
350 bar maximum operating pressure
Lower flange mounting; M68 x 1.5 body thread
3.11 cm³ oil capacity, 3.1 L/min maximum flow

Enerpac WFL222

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Dimension H114,0 mm

Dimension F25,4 mm

Dimension U255,6 mm

Dimension H213,2 mm

Plunger Contact Spring Force (Advance)9,3 N

Maximum Operating Pressure350 bar

Capacity22,2 kN

Dimension U155,6 mm

Dimension E38,00 mm

ApplicationsHold

Dimension DM68 X 1,5 mm

Dimension KM20 x 2,5 mm

Work Support Mounting StyleLower Flange

Mounting Dimension V7,2 mm

Product TypeHydraulic Advance - Lower Flange

Mounting Dimension S14,2 mm

Max. Support Force22,2 kN

SeriesWFL

Dimension C126,4 mm

Mounting Dimension Q27,4 mm

Mounting Dimension AM68 x 1,5 mm

Oil Capacity3,11 cm³

Mounting Dimension U155,4 mm

Dimension N23,4 mm

Maximum Oil Flow3,1 l/min

Mounting Dimension R8,6 mm

Mounting Dimension U255,4 mm

Plunger Spring Retract Force86,8 N

Dimension L6,1 mm

Stroke10.4 mm

Minimum Operating Pressure48 bar

Product LineWorkholding Tools

Weight2,2 kg

Dimension C78,0 mm

Dimension B94,5 mm

Dimension D169,9 mm

Dimension A104,9 mm

Dimension D282,6 mm

Documents & CAD

For this product 1

Repair Parts SheetWork SupportPDF·59 KB·English

Series documents 2· shared by this product series

Instruction ManualWork SupportPDF·467 KB 4 languages· in one file

BrochureWorkholding Work Supports, EnglishPDF·640 KB

CAD Files 5

3D Model
