How can I get a price quote for Enerpac W8085MX?

You can request a fast quote for Enerpac W8085MX from Yılsa Engineering. Reference part number YLS6CCW99WYTO7K. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W8085MX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W8085MX genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W8085MX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

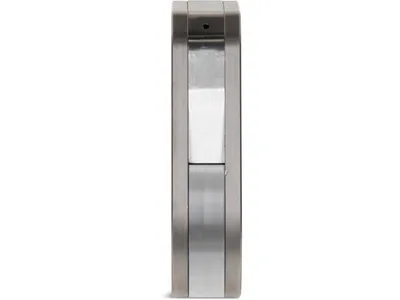

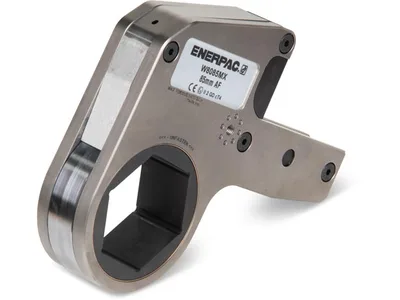

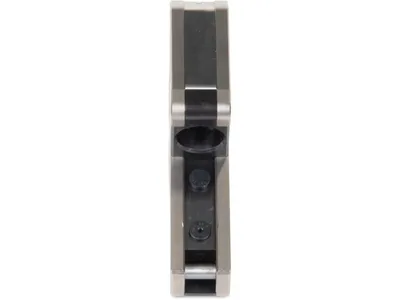

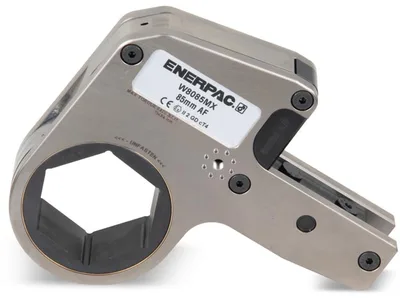

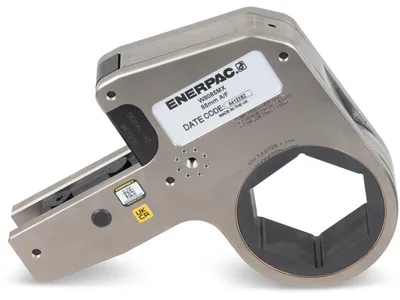

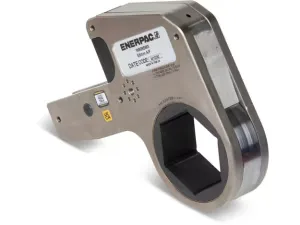

Enerpac W8085MX 85 mm Hex Cassette

Enerpac W8085MX; 85 mm hexagon, 11484 Nm (8470 ft·lb) maximum torque, metric low profile hydraulic torque wrench cassette for the W8000X drive unit.

EnerpacMFR # W8085MXSKU # YLS6CCW99WYTO7K

Dimension G92 mm (3.63 in)

Country of OriginUnited Kingdom

Dimension F25 mm (0.98 in)

Dimension D53 mm (2.07 in)

Dimension C208 mm (8.19 in)

Maximum Torque Output11484 Nm (8470 ft-lbs)

Have questions?Chat on WhatsApp

About This Product

The W8085MX is a metric cassette with an 85 mm hexagon size for the W8000X drive unit. Maximum torque output is 11484 Nm (8470 ft·lb). Nose radius is 66 mm and weight is approximately 8.2 kg. W-series low profile hexagon cassettes work with a compatible drive unit to give access for bolting in tight spaces. The cassette is made of steel, is CE - ATEX declared and ships with a calibration certificate. The fast release mechanism in the drive unit allows cassettes to be exchanged without tools and with no pins to lose. It is used in bolting where clearance around the nut is restricted. W-series hexagon reducers can be used for sizes smaller than 85 mm.

Features and Benefits

85 mm metric hexagon size
Designed for use with the W8000X drive unit
CE - ATEX declared; shipped with a calibration certificate
Steel construction for heavy use
Fast release: tool-free cassette exchange with no pins to lose
Optimum nose radius (66 mm) for restricted clearance applications

Enerpac W8085MX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G92 mm (3.63 in)

Country of OriginUnited Kingdom

Dimension F25 mm (0.98 in)

Dimension D53 mm (2.07 in)

Dimension C208 mm (8.19 in)

Maximum Torque Output11484 Nm (8470 ft-lbs)

Dimension E42 mm

Dimension B205 mm (8.07 in)

ApplicationsTorque

Nose Radius (H)66 mm (2.6 in)

Product TypeCassette - Metric

SeriesW - Cassette

Model Type85 mm for W8000X

Dimension A172 mm (6.77 in)

Product LineBolting Tools

Weight8,2 kg (18.42 lbs)

Hexagon Size S85 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W8000X SeriesPDF·865 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing

Alternative Names & Search Terms

W8085MXW 8085 MXW8085-MXEnerpac W8085MXW8085MX cassetteW8085MX metric cassetteW8085MX torque wrench cassetteW8000X cassetteEnerpac W series cassetteEnerpac W series metric cassette85 mm hex torque wrench cassette85 mm hydraulic torque wrench cassettemetric hexagon cassettelow profile hexagon cassette11484 Nm torque wrench cassette8470 ft lb torque wrench cassette85 mm cassette for W8000XATEX hydraulic torque wrench cassette
