How can I get a price quote for Enerpac W4215X?

You can request a fast quote for Enerpac W4215X from Yılsa Engineering. Reference part number YLSYQVQMMA1CPSE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W4215X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W4215X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W4215X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

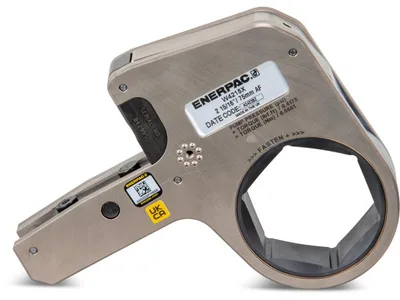

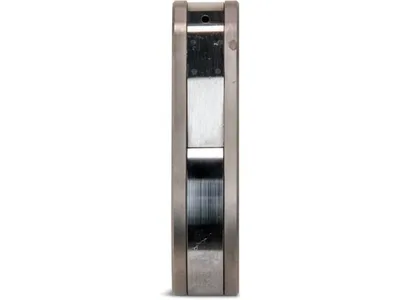

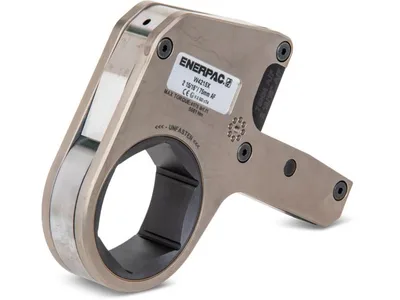

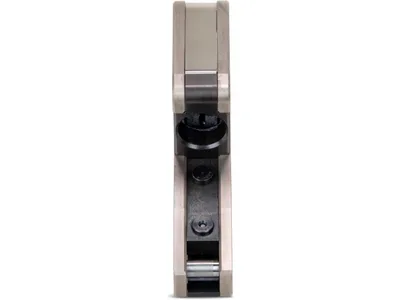

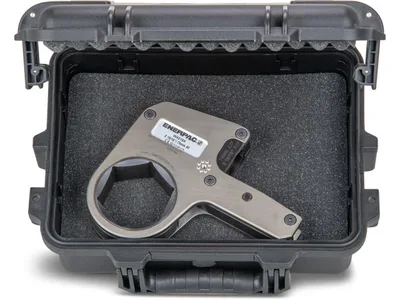

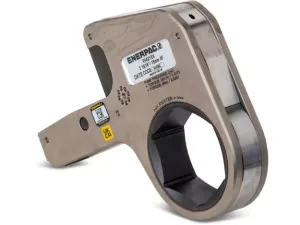

Enerpac W4215X 75 mm Hex Cassette

Enerpac W4215X; 75 mm (2 15/16 in) hexagon, 5661 Nm maximum torque, low profile torque wrench cassette for W4000X.

EnerpacMFR # W4215XSKU # YLSYQVQMMA1CPSE

Dimension G81,6 mm (3.21 in)

Country of OriginUnited Kingdom

Length233 mm (9.19 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Have questions?Chat on WhatsApp

About This Product

The W4215X is a W-Series low profile hexagon cassette used with the W4000X drive unit. It has a 75 mm (2 15/16 in) hexagon size for imperial or metric applications. Maximum torque output is 5661 Nm (4175 ft·lb), minimum torque is 566 Nm (418 ft·lb) and maximum operating pressure is 690 bar (10,000 psi). The cassette measures about 233 mm in length, 41 mm in width and 196 mm in height; country of origin is the United Kingdom. It is designed for tight-access bolting applications. The steel construction suits heavy use; it is ATEX declared and supplied with a calibration certificate.

Features and Benefits

75 mm (2 15/16 in) hexagon size
5661 Nm (4175 ft·lb) maximum torque output
Low profile for tight-access bolting
Fast, tool-free cassette exchange in compatible drive units
CE - ATEX declared, calibration certificate included
Robust steel construction

Enerpac W4215X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G81,6 mm (3.21 in)

Country of OriginUnited Kingdom

Length233 mm (9.19 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Maximum Torque Output5661 Nm (4175 ft-lbs)

Dimension E33 mm

Dimension B167 mm (6.57 in)

ApplicationsTorque

Nominal Torque5661 Nm (4175 ft-lbs)

Nose Radius (H)55,3 mm (2.18 in)

Product TypeCassette - Imperial or Metric

AF Size2 15/16 in

Width41 mm (1.61 in)

Maximum Operating Pressure10,000 psi

SeriesW - Cassette

Minimum Torque566 Nm (418 ft-lbs)

Model Type2 15/16 in. / 75 mm for W4000X

Hexagon Size (S)2 15/16 in

Dimension A136 mm (5.35 in)

Product LineBolting Tools

Height196 mm (7.73 in)

Weight4.1 kg (8.96 lbs)

Hexagon Size S75 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W4000X SeriesPDF·877 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing

Alternative Names & Search Terms

W4215XW-4215XW 4215XEnerpac W4215XEnerpac W-4215XW4215X cassetteW4215X torque wrench cassetteW4215X hexagon cassetteEnerpac W series cassetteEnerpac W-Series torque wrench cassetteW4000X cassette75 mm cassette for W4000X75 mm hex torque cassette2 15/16 in hexagon cassette75 mm hydraulic torque wrench cassette5661 Nm torque wrench cassettelow profile hexagon cassettetight access bolting cassetteATEX declared torque cassette
