How can I get a price quote for Enerpac W4212X?

You can request a fast quote for Enerpac W4212X from Yılsa Engineering. Reference part number YLSCORS8XVC3HE6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W4212X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W4212X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W4212X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

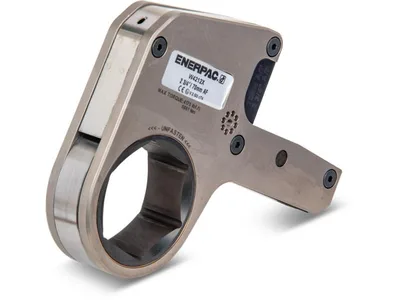

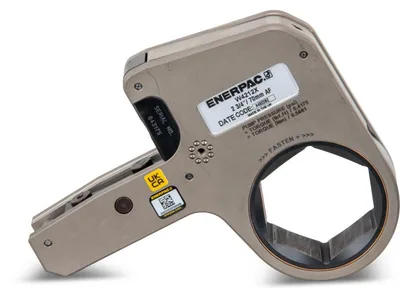

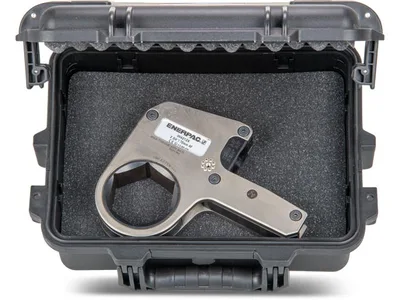

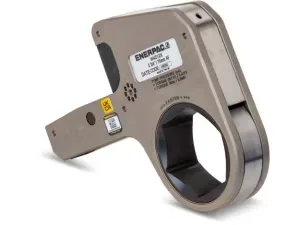

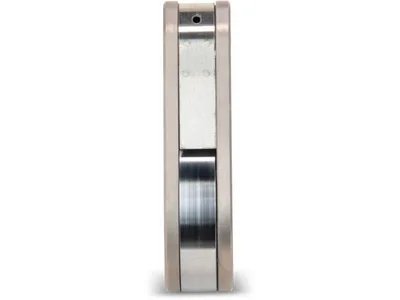

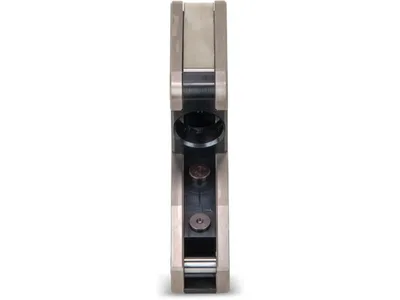

Enerpac W4212X 70 mm Hexagon Cassette

Enerpac W4212X; 70 mm (2 3/4 in) hexagon, 5661 Nm (4175 ft·lb) maximum torque, low profile torque wrench cassette for the W4000X.

EnerpacMFR # W4212XSKU # YLSCORS8XVC3HE6

Dimension G78,3 mm (3.08 in)

Country of OriginUnited Kingdom

Length231 mm (9.08 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Have questions?Chat on WhatsApp

About This Product

W4212X is a W-series low profile hexagon cassette used with the W4000X drive unit. It has a 70 mm (2 3/4 in) hexagon size and provides access for bolting in tight spaces. It is made of steel, is CE - ATEX declared and ships with a calibration certificate. Maximum torque output is 5661 Nm (4175 ft·lb), minimum torque is 566 Nm (418 ft·lb) and maximum operating pressure is 690 bar (10,000 psi). Length is 231 mm, width 41 mm and height 192 mm. Country of origin is the United Kingdom. The fast-release drive unit allows cassettes to be exchanged without tools. It is used on flange, pressure equipment and heavy industrial joints.

Features and Benefits

70 mm (2 3/4 in) hexagon size, for the W4000X
Maximum torque 5661 Nm (4175 ft·lb), minimum torque 566 Nm (418 ft·lb)
Maximum operating pressure 690 bar (10,000 psi)
Low profile steel construction for bolting in tight spaces
CE - ATEX declared; shipped with a calibration certificate
Fast-release drive unit for tool-free cassette exchange

Enerpac W4212X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G78,3 mm (3.08 in)

Country of OriginUnited Kingdom

Length231 mm (9.08 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Maximum Torque Output5661 Nm (4175 ft-lbs)

Dimension E33 mm

Dimension B167 mm (6.57 in)

ApplicationsTorque

Nominal Torque5661 Nm (4175 ft-lbs)

Nose Radius (H)52,5 mm (2.07 in)

Product TypeCassette - Imperial or Metric

AF Size2 3/4 in

Width41 mm (1.61 in)

Maximum Operating Pressure10,000 psi

SeriesW - Cassette

Minimum Torque566 Nm (418 ft-lbs)

Model Type2 3/4 in. / 70 mm for W4000X

Hexagon Size (S)2 3/4 in

Dimension A136 mm (5.35 in)

Product LineBolting Tools

Height192 mm (7.55 in)

Weight4.0 kg (8.84 lbs)

Hexagon Size S70 mm

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing
