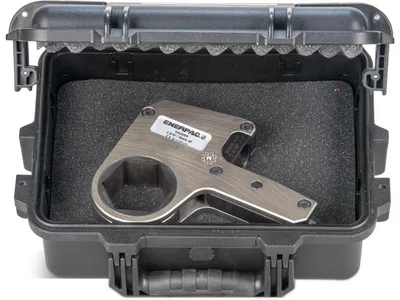

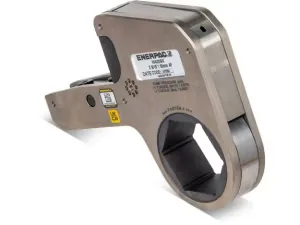

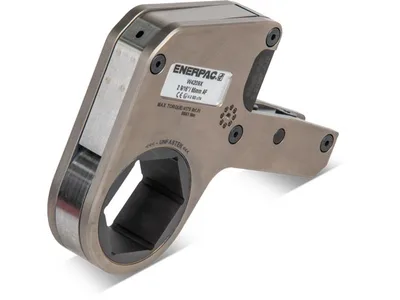

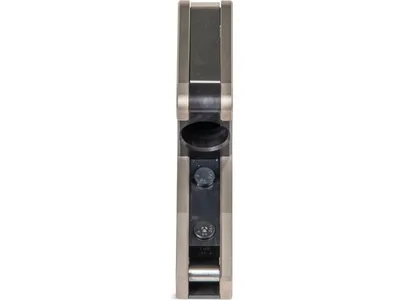

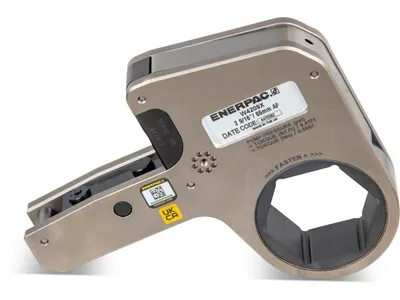

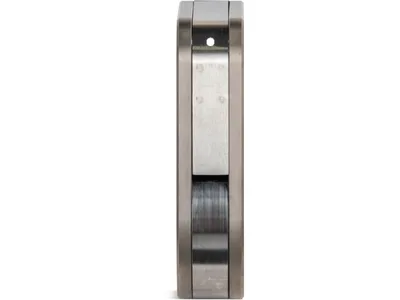

Enerpac W4209X 65 mm Torque Wrench Cassette

Enerpac W4209X; 65 mm (2 9/16 in) hexagon, 5661 Nm (4175 ft-lb) max torque, 690 bar (10,000 psi) low-profile cassette for the W4000X hydraulic torque wrench.

EnerpacMFR # W4209XSKU # YLSZOYK15FPSRTQ

Dimension G76,2 mm (3 in)

Country of OriginUnited Kingdom

Length228 mm (8.96 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Have questions?Chat on WhatsApp

About This Product

W4209X is a W-Series low-profile hexagon cassette used with the W4000X drive unit. It works with imperial or metric sizes and has a 65 mm (2 9/16 in) hexagon size. Maximum torque output is 5661 Nm (4175 ft-lb), minimum torque is 566 Nm (418 ft-lb), and maximum operating pressure is 690 bar (10,000 psi). Dimensions: length 228 mm, width 41 mm, height 191 mm. Country of origin is the United Kingdom. Built from steel for tight-access bolting, the cassette is CE - ATEX declared and supplied with a calibration certificate. The fast-release design in the drive unit allows cassettes to be exchanged with no tools and no loose pins.

Features and Benefits

65 mm (2 9/16 in) hexagon size; imperial or metric use
Max torque 5661 Nm (4175 ft-lb), min torque 566 Nm (418 ft-lb)
Low profile for tight-access bolting applications
Steel construction for durability in heavy use
CE - ATEX declared, supplied with calibration certificate
Tool-free fast cassette exchange

Enerpac W4209X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G76,2 mm (3 in)

Country of OriginUnited Kingdom

Length228 mm (8.96 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Maximum Torque Output5661 Nm (4175 ft-lbs)

Dimension E33 mm

Dimension B167 mm (6.57 in)

ApplicationsTorque

Nominal Torque5661 Nm (4175 ft-lbs)

Nose Radius (H)49,5 mm (1.95 in)

Product TypeCassette - Imperial or Metric

AF Size2 9/16 in

Width41 mm (1.61 in)

Maximum Operating Pressure10,000 psi

SeriesW - Cassette

Minimum Torque566 Nm (418 ft-lbs)

Model Type2 9/16 in. / 65 mm for W4000X

Hexagon Size (S)2 9/16 in

Dimension A136 mm (5.35 in)

Product LineBolting Tools

Height191 mm (7.5 in)

Weight3.9 kg (8.67 lbs)

Hexagon Size S65 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W4000X SeriesPDF·877 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing
