How can I get a price quote for Enerpac W4207X?

You can request a fast quote for Enerpac W4207X from Yılsa Engineering. Reference part number YLS07UERINKDOHG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W4207X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W4207X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W4207X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

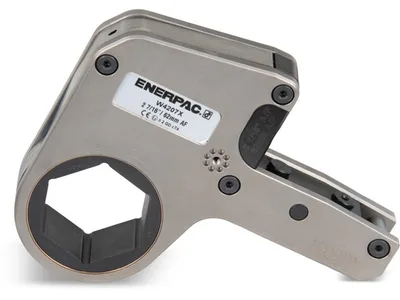

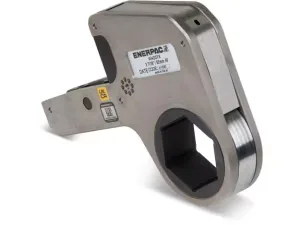

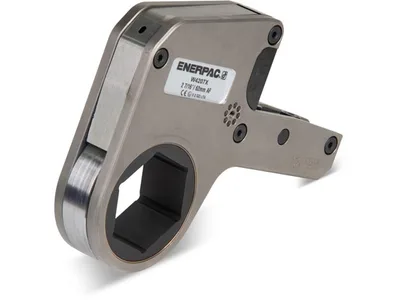

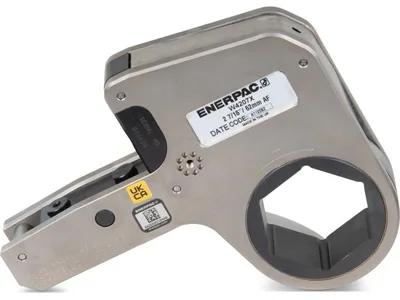

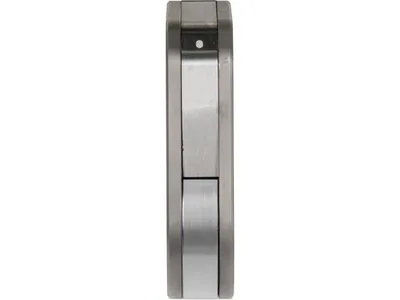

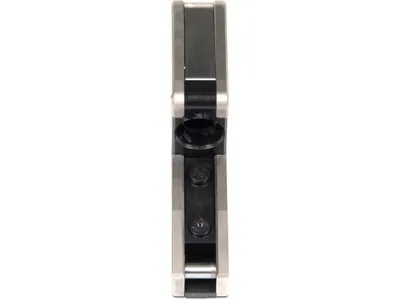

Enerpac W4207X 2 7/16 in Cassette

Enerpac W4207X; 2 7/16 in (≈61.9 mm) hex, 566–5661 Nm torque range, 10,000 psi (690 bar) low profile torque wrench cassette for the W4000X drive unit.

EnerpacMFR # W4207XSKU # YLS07UERINKDOHG

Dimension G76,2 mm (3 in)

Country of OriginUnited Kingdom

Length228 mm (8.96 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Have questions?Chat on WhatsApp

About This Product

W4207X is a W-Series imperial hexagon cassette used with the W4000X drive unit. Hex size is 2 7/16 in; nominal and maximum torque is 5661 Nm (4175 ft·lb) and minimum torque is 566 Nm (418 ft·lb). Maximum operating pressure is given as 10,000 psi (690 bar). The cassette is made of steel and weighs 4.1 kg, with a length of 228 mm, width of 41 mm and height of 191 mm. Nose radius is 1.95 in (≈49.5 mm), designed for bolting with restricted access. Country of origin is the United Kingdom. It is CE - ATEX declared and shipped with a calibration certificate. It allows fast cassette exchange in the drive unit with no tools or pins required. It is used for bolting in tight spaces in energy, petrochemical, heavy industry and flange applications.

Features and Benefits

Low profile hexagon cassette for tight access bolting
5661 Nm (4175 ft·lb) maximum torque, 566 Nm (418 ft·lb) minimum torque
CE - ATEX declared; shipped with calibration certificate
Steel construction for heavy use and durability
Fast exchange; no tools required and no pins to lose
4.1 kg weight, 1.95 in (≈49.5 mm) nose radius

Enerpac W4207X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G76,2 mm (3 in)

Country of OriginUnited Kingdom

Length228 mm (8.96 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Maximum Torque Output5661 Nm (4175 ft-lbs)

Dimension E33 mm

Dimension B167 mm (6.57 in)

ApplicationsTorque

Nominal Torque5661 Nm (4175 ft-lbs)

Nose Radius (H)49,5 mm (1.95 in)

Product TypeCassette - Imperial

AF Size2 7/16 in

Width41 mm (1.61 in)

Maximum Operating Pressure10,000 psi

SeriesW - Cassette

Minimum Torque566 Nm (418 ft-lbs)

Model Type2 7/16 in. for W4000X

Hexagon Size (S)2 7/16 in

Dimension A136 mm (5.35 in)

Product LineBolting Tools

Height191 mm (7.5 in)

Weight4.1 kg (8.96 lbs)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W4000X SeriesPDF·877 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing

Alternative Names & Search Terms

W4207XW-4207XW 4207XW4207 XEnerpac W4207XEnerpac W-4207XW4207X cassetteW4207X torque wrench cassetteW4207X hexagon cassetteEnerpac W4000X cassetteEnerpac W series cassetteW4000X imperial cassette2 7/16 in hex cassette2 7/16 inch torque wrench cassette5661 Nm torque wrench cassettelow profile hexagon cassettehydraulic torque wrench cassetteATEX torque wrench cassettecassette for W4000X drive unittight access bolting cassette
