How can I get a price quote for Enerpac W4206X?

You can request a fast quote for Enerpac W4206X from Yılsa Engineering. Reference part number YLSGGWCHSEMBUOM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W4206X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W4206X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W4206X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

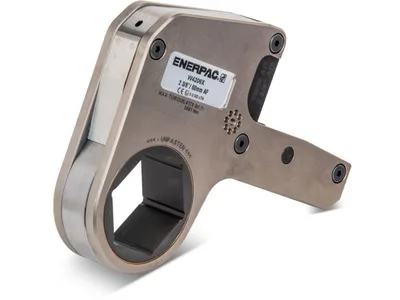

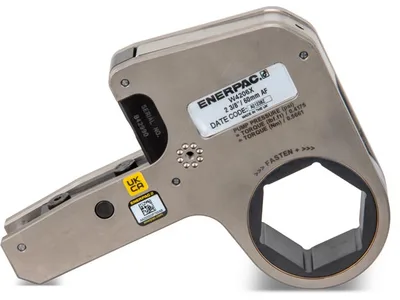

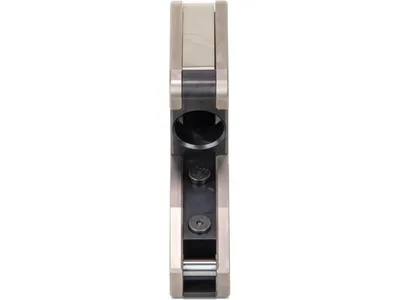

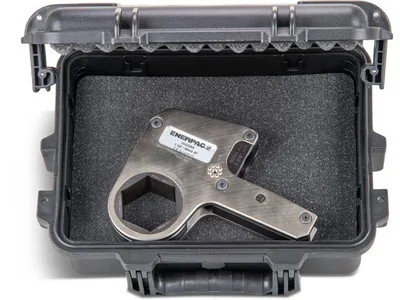

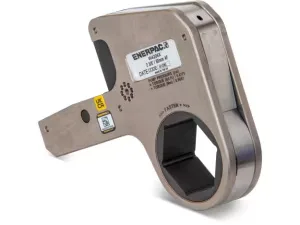

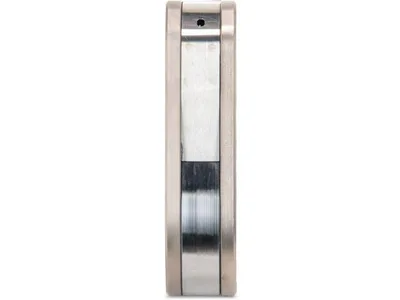

Enerpac W4206X 5661 Nm Hex Cassette

Enerpac W4206X; W4000X imperial/metric hexagon cassette, 60 mm (2 3/8 in) hex size, 5,661 Nm (4,175 ft-lbs) maximum torque.

EnerpacMFR # W4206XSKU # YLSGGWCHSEMBUOM

Dimension G70,6 mm (2.78 in)

Country of OriginUnited Kingdom

Length223 mm (8.76 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Have questions?Chat on WhatsApp

About This Product

The W4206X is a low-profile hexagon cassette for the W4000X torque wrench, suitable for imperial or metric use. Hex size is 60 mm (2 3/8 in), maximum torque output is 5,661 Nm (4,175 ft-lbs) and minimum torque is 566 Nm (418 ft-lbs). Maximum operating pressure is 10,000 psi (about 690 bar). The cassette is made of steel and designed for bolting in tight-access spaces. It exchanges in the drive unit without tools through a fast-release design. It is CE - ATEX declared and shipped with a calibration certificate. Length is 223 mm, width 41 mm, height 187 mm, and nose radius is 1.83 in. Country of origin is the United Kingdom.

Features and Benefits

60 mm (2 3/8 in) hexagon size, imperial or metric use
Torque range 566 to 5,661 Nm (418 to 4,175 ft-lbs)
Maximum operating pressure 10,000 psi (about 690 bar)
Low profile for tight-access applications
Fast cassette exchange without tools
CE - ATEX declared, with calibration certificate

Enerpac W4206X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G70,6 mm (2.78 in)

Country of OriginUnited Kingdom

Length223 mm (8.76 in)

Dimension F20 mm (0.79 in)

Dimension D41 mm (1.61 in)

Dimension C178 mm (7.01 in)

Maximum Torque Output5661 Nm (4175 ft-lbs)

Dimension E33 mm

Dimension B167 mm (6.57 in)

ApplicationsTorque

Nominal Torque5661 Nm (4175 ft-lbs)

Nose Radius (H)46,5 mm (1.83 in)

Product TypeCassette - Imperial or Metric

AF Size2 3/8 in

Width41 mm (1.61 in)

Maximum Operating Pressure10,000 psi

SeriesW - Cassette

Minimum Torque566 Nm (418 ft-lbs)

Model Type2 3/8 in. / 60 mm for W4000X

Hexagon Size (S)2 3/8 in

Dimension A136 mm (5.35 in)

Product LineBolting Tools

Height187 mm (7.38 in)

Weight3.8 kg (8.47 lbs)

Hexagon Size S60 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W4000X SeriesPDF·877 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing
