How can I get a price quote for Enerpac W15302X?

You can request a fast quote for Enerpac W15302X from Yılsa Engineering. Reference part number YLSIOTWQQ7KOKAI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W15302X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W15302X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W15302X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

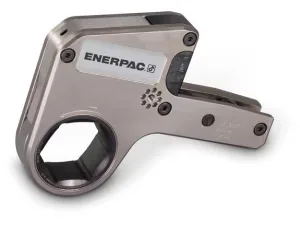

Enerpac W15302X 80 mm Torque Wrench Cassette

Enerpac W15302X; 80 mm (3 1/8 in) hexagon, 20,785 Nm (15,330 ft-lbs) max torque, low profile torque wrench cassette for W15000X.

EnerpacMFR # W15302XSKU # YLSIOTWQQ7KOKAI

Dimension G92,9 mm (3.66 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D63 mm (2.48 in)

Dimension C253 mm (9.96 in)

Maximum Torque Output20785 Nm (15330 ft-lbs)

Have questions?Chat on WhatsApp

About This Product

W15302X is a W-Series low profile hexagon cassette used with the W15000X drive unit. Its hexagon size is 80 mm (3 1/8 in), suitable for metric and imperial applications. Maximum torque output is 20,785 Nm (15,330 ft-lbs) and weight is 13.8 kg. Main dimensions are A 207 mm, B 240 mm, C 253 mm, D 63 mm, E 50 mm, F 20 mm and G 92.9 mm; nose radius is 64.5 mm. Country of origin is the United Kingdom. It is used in bolting applications with restricted access. X-edition cassettes are CE - ATEX declared and ship with a calibration certificate.

Features and Benefits

Low profile hexagon cassette for tight access bolting
Maximum torque output of 20,785 Nm (15,330 ft-lbs)
Steel construction for heavy use
Fast release in the compatible drive unit, no tools required
Optimum nose radius for strength-to-size ratio in restricted clearance
CE - ATEX declared, calibration certificate included

Enerpac W15302X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G92,9 mm (3.66 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D63 mm (2.48 in)

Dimension C253 mm (9.96 in)

Maximum Torque Output20785 Nm (15330 ft-lbs)

Dimension E50 mm

Dimension B240 mm (9.45 in)

ApplicationsTorque

Nose Radius (H)64,5 mm (2.54 in)

Product TypeCassette - Imperial or Metric

AF Size3 1/8 in

SeriesW - Cassette

Model Type3 1/8 in. / 80 mm for W15000X

Hexagon Size (S)3 1/8 in

Dimension A207 mm (8.15 in)

Product LineBolting Tools

Weight13,8 kg (30.34 lbs)

Hexagon Size S80 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W15000X SeriesPDF·897 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 4

3D Model

2D Drawing

PRT.prt · 14.9 MB
