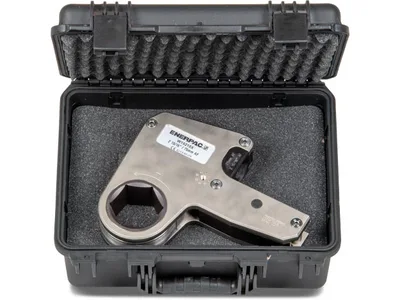

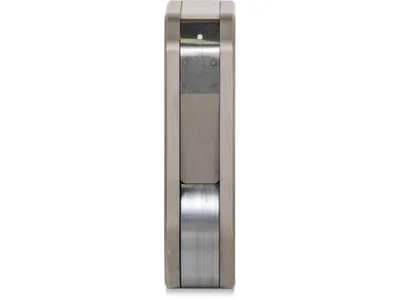

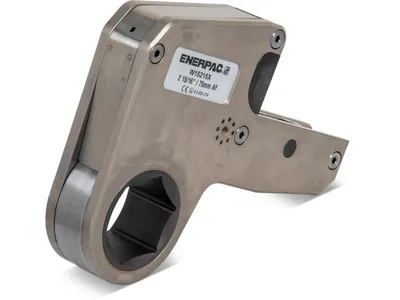

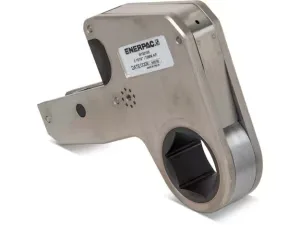

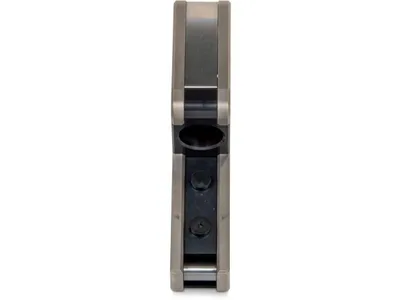

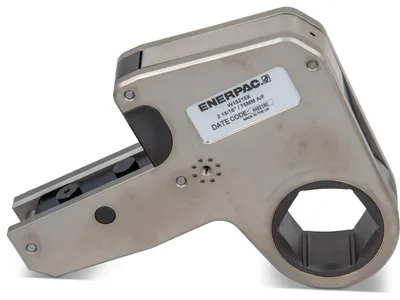

Enerpac W15215X 75 mm / 2 15/16 in Hex Cassette

Enerpac W15215X; 2 15/16 in / 75 mm hexagon size, 20785 Nm (15330 ft·lb) maximum torque, low profile hexagon cassette for the W15000X torque wrench.

EnerpacMFR # W15215XSKU # YLSSV7WICXRU1PV

Dimension G90,5 mm (3.56 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D63 mm (2.48 in)

Dimension C253 mm (9.96 in)

Maximum Torque Output20785 Nm (15330 ft-lbs)

Have questions?Chat on WhatsApp

About This Product

W15215X is a low profile hexagon cassette with a 2 15/16 in / 75 mm hexagon size, used with the W15000X torque wrench. It covers both imperial and metric fasteners and is designed for bolting applications with restricted access. Maximum torque output is 20785 Nm (15330 ft·lb) and weight is 13.7 kg. Main dimensions: A 207 mm, B 240 mm, C 253 mm, D 63 mm, E 50 mm, F 20 mm, G 90.5 mm; nose radius H 62 mm. It is made of steel, is CE - ATEX declared and ships with a calibration certificate. It allows tool-free fast exchange in compatible drive units. Country of origin is the United Kingdom.

Features and Benefits

2 15/16 in / 75 mm hexagon size for the W15000X
Maximum torque output of 20785 Nm (15330 ft·lb)
Low profile and nose radius for restricted clearance
Tool-free fast cassette exchange
CE - ATEX declared, supplied with calibration certificate
Steel construction for heavy-duty use

Enerpac W15215X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G90,5 mm (3.56 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D63 mm (2.48 in)

Dimension C253 mm (9.96 in)

Maximum Torque Output20785 Nm (15330 ft-lbs)

Dimension E50 mm

Dimension B240 mm (9.45 in)

ApplicationsTorque

Nose Radius (H)62,0 mm (2.44 in)

Product TypeCassette - Imperial or Metric

AF Size2 15/16 in

SeriesW - Cassette

Model Type2 15/16 in. / 75 mm for W15000X

Hexagon Size (S)2 15/16 in

Dimension A207 mm (8.15 in)

Product LineBolting Tools

Weight13,7 kg (30.08 lbs)

Hexagon Size S75 mm

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W15000X SeriesPDF·897 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 4

3D Model

2D Drawing

PRT.prt · 14.2 MB
