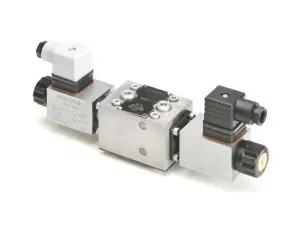

Enerpac VP0322 350 bar Solenoid Valve

Enerpac VP0322; 350 bar (5,000 psi), 19 L/min, 4-way 3-position float center solenoid poppet valve, 110 VAC.

EnerpacMFR # VP0322SKU # YLSX36CN4CSIIT7

Country of OriginGermany

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity19 l/min

Product TypeSolenoid Poppet Valve

Pressure Range0 - 5,000 psi

SeriesVP03

Have questions?Chat on WhatsApp

About This Product

VP0322 is a zero-leakage, solenoid-operated poppet valve from the Enerpac VP03 series. It is a 4-way, 3-position, float center valve with a 110 VAC coil. Maximum operating pressure is 350 bar (5,000 psi) and flow capacity is 19 L/min (5 gpm). It uses a D03 or CETOP 3 mounting pattern. It is used to control the advance and retract of single-acting and double-acting cylinders, and suits workholding systems that need electrically controlled circuits.

Features and Benefits

Zero leakage, solenoid-operated poppet valve design
Controls advance and retract of single-acting and double-acting cylinders
4-way, 3-position, float center
110 VAC solenoid voltage
D03 / CETOP 3 mounting pattern

Enerpac VP0322

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity19 l/min

Product TypeSolenoid Poppet Valve

Pressure Range0 - 5,000 psi

SeriesVP03

Valve Operation TypeSolenoid

Max. Oil Flow5 gpm

Product LineWorkholding Tools

Voltage110 VAC

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model
