How can I get a price quote for Enerpac VP0321?

You can request a fast quote for Enerpac VP0321 from Yılsa Engineering. Reference part number YLSJZOUMG2AWLZ0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VP0321 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VP0321 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VP0321?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

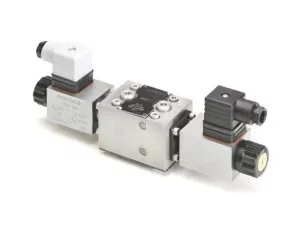

Enerpac VP0321 350 bar Solenoid Valve

Enerpac VP0321; 350 bar (5,000 psi), 19 L/min, 4-way 3-position float center solenoid poppet valve, 24 VDC.

EnerpacMFR # VP0321SKU # YLSJZOUMG2AWLZ0

Country of OriginGermany

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity19 l/min

Product TypeSolenoid Poppet Valve

Pressure Range0 - 5,000 psi

SeriesVP03

Have questions?Chat on WhatsApp

About This Product

VP0321 is a zero-leakage, solenoid-operated poppet valve from the Enerpac VP03 series. It is a 4-way, 3-position, float center valve with a 24 VDC coil. Maximum operating pressure is 350 bar (5,000 psi) and flow capacity is 19 L/min (5 gpm). It uses a D03 or CETOP 3 mounting pattern. It is used to control the advance and retract of single-acting and double-acting cylinders, and suits workholding systems that need electrically controlled circuits.

Features and Benefits

Zero leakage, solenoid-operated poppet valve design
Controls advance and retract of single-acting and double-acting cylinders
4-way, 3-position, float center
24 VDC solenoid voltage
D03 / CETOP 3 mounting pattern

Enerpac VP0321

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity19 l/min

Product TypeSolenoid Poppet Valve

Pressure Range0 - 5,000 psi

SeriesVP03

Valve Operation TypeSolenoid

Max. Oil Flow5 gpm

Product LineWorkholding Tools

Voltage24 VDC

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model
