How can I get a price quote for Enerpac VMMD001?

You can request a fast quote for Enerpac VMMD001 from Yılsa Engineering. Reference part number YLS7K2130CAPEPD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VMMD001 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VMMD001 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VMMD001?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

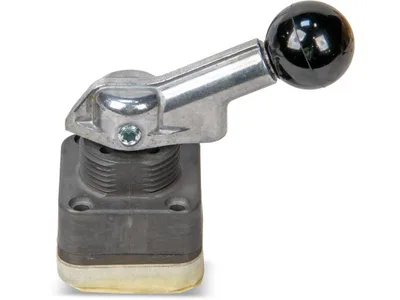

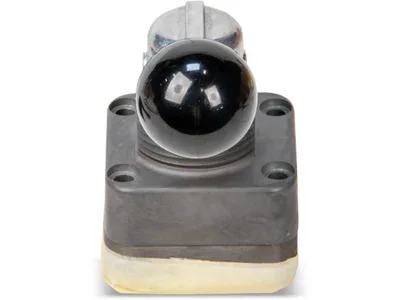

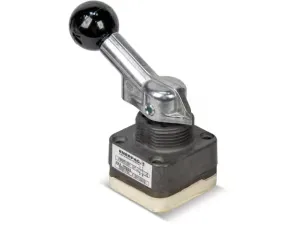

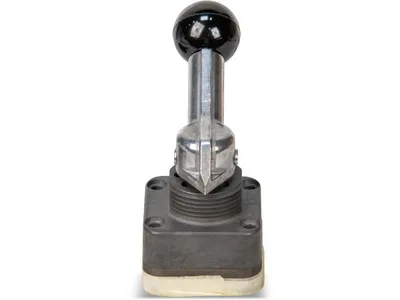

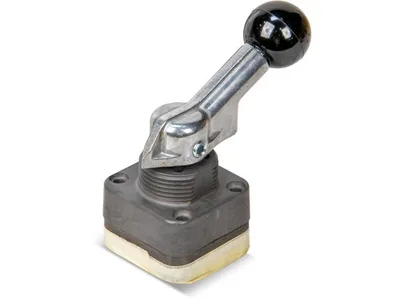

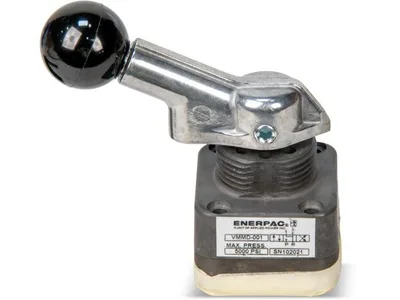

Enerpac VMMD001 350 bar Manual Valve

Enerpac VMMD001; 350 bar (5,000 psi), 17 L/min, 4-way 3-position manual hydraulic valve with D03/CETOP 3 mounting.

EnerpacMFR # VMMD001SKU # YLS7K2130CAPEPD

Country of OriginUnited States

Max. Oil Flow1040 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity17 l/min

Product TypeManual D03/CETOP3 Valve

Pressure Range0 - 5,000 psi

Have questions?Chat on WhatsApp

About This Product

VMMD001 is a 4-way, 3-position manual valve from the Enerpac VMM series. It can be used with single-acting and double-acting cylinders and follows the D03/CETOP 3 mounting standard. Maximum operating pressure is 350 bar (5,000 psi), flow capacity is 17 L/min and pressure drop is 4.8 bar (70 psi). Handle positions are detented, and handle effort stays low (12 lbs) even at full pressure. Its compact body allows direct mounting on a fixture for individual circuit control. The handle can be repositioned for side-by-side valve mounting. It is used in workholding applications.

Features and Benefits

Near zero leakage pressure seal design
4-way, 3-position design with detented handle positions
Low handle effort (12 lbs) even at full pressure
Handle can be repositioned for side-by-side valve mounting
Compact size for direct fixture mounting and individual circuit control
D03/CETOP 3 mounting pattern; #10-24 UN mounting bolts included

Enerpac VMMD001

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Max. Oil Flow1040 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Flow Capacity17 l/min

Product TypeManual D03/CETOP3 Valve

Pressure Range0 - 5,000 psi

Cylinder CompatibilitySingle-Acting, Double-Acting

SeriesVMM

Valve Operation TypeManual

Product LineWorkholding Tools

Pressure Drop4,8 bar (70 psi)

Documents & CAD

For this product 1

2D DrawingVMMD001 drawingPDF·1.3 MB

Series documents 3· shared by this product series

Instruction ManualManual ValvesPDF·386 KB 4 languages· in one file

Repair Parts SheetValve - ManualPDF·65 KB·English

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

VMMD001VMMD 001VMMD-001vmmd001Enerpac VMMD001Enerpac VMMD 001Enerpac VMMD-001VMMD001 valveVMMD001 manual valveEnerpac VMM seriesEnerpac VMM series manual valveVMM series valveD03 CETOP3 manual valve4-way 3-position manual valve350 bar manual hydraulic valvemanual valve with D03/CETOP 3 mountingmanual valve for single and double acting cylindersworkholding manual valveEnerpac manual directional control valve
