How can I get a price quote for Enerpac VM43?

You can request a fast quote for Enerpac VM43 from Yılsa Engineering. Reference part number CEY-937FC77C847D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VM43 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VM43 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VM43?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

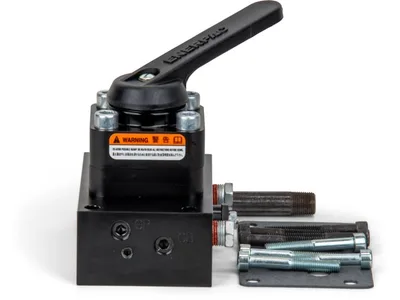

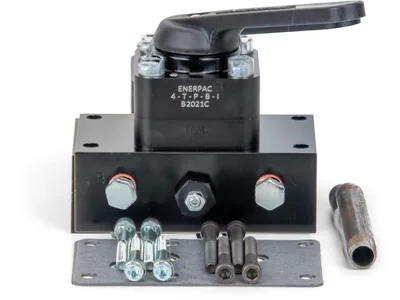

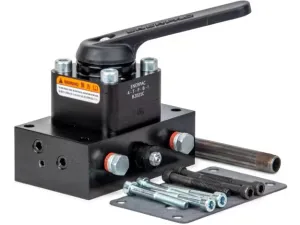

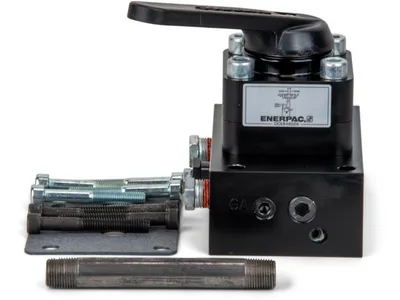

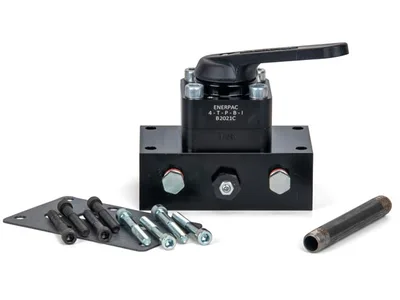

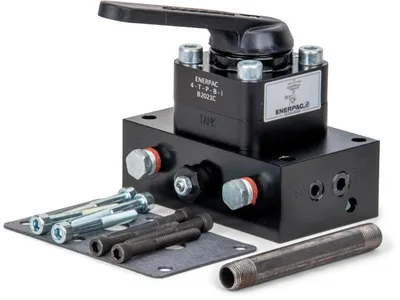

Enerpac VM43 4-Way Directional Valve 700 bar

Enerpac VM43; 700 bar (10,000 psi) maximum pressure, 17 L/min (4.5 gal/min) flow, pump-mounted 4-way, 3-position, tandem center manual directional control valve.

EnerpacMFR # VM43SKU # CEY-937FC77C847D

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Tandem Center

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

The VM43 is a pump-mounted, manually operated 4-way, 3-position, tandem center directional control valve from the Enerpac VM series. It provides advance / hold / retract operation and is compatible with double-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min) and weight is 3.1 kg. Pump mounting retrofits most Enerpac pumps. User-adjustable relief valves allow the working pressure to be set easily. It is used in industrial and workholding applications.

Features and Benefits

Manual operation, advance / hold / retract function
Retrofits on most Enerpac pumps
User-adjustable relief valves
700 bar (10,000 psi) maximum operating pressure
17 L/min (4.5 gal/min) flow capacity

Enerpac VM43

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Tandem Center

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilityDouble-Acting

SeriesVM

Valve Operation TypeManual

Product LineIndustrial Tools, Workholding Tools

Weight3,1 kg (6.8 lbs)

Documents & CAD

Series documents 20· shared by this product series

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·English

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.8 MB·中文

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Svenska

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Русский

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Română

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Português

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Polski

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Norsk

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Nederlands

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·13.0 MB·한국어

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Italiano

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·10.7 MB·日本語

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Français

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Suomi

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Español

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Čeština

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Deutsch

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Repair Parts SheetManual Valves - VM33, VM33M, VM33L, VM43, VM43M, VM43LPDF·2.0 MB 4 languages· in one file

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

VM43VM 43VM-43Enerpac VM43VM43 valveVM43 directional control valveVM43 manual valveVM43 pump mounted valveEnerpac VM seriesEnerpac VM series valveEnerpac manual directional valve4-way 3-position directional control valvetandem center directional valvepump mounted directional control valve700 bar manual directional valve17 L/min directional control valvemanual directional valve with relief valvesdirectional valve for Enerpac pumps
