How can I get a price quote for Enerpac VM33VAC?

You can request a fast quote for Enerpac VM33VAC from Yılsa Engineering. Reference part number YLSPRY8RMM08EAY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VM33VAC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VM33VAC genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VM33VAC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

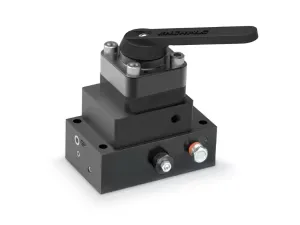

Enerpac VM33VAC Venturi Return Assist 3-Way Valve

Enerpac VM33VAC; manual 3-way, 3-position pump mounted directional control valve with venturi return assist, 700 bar (10,000 psi), 17 L/min flow.

EnerpacMFR # VM33VACSKU # YLSPRY8RMM08EAY

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Have questions?Chat on WhatsApp

About This Product

The VM33VAC is a pump mounted, manually operated 3-way, 3-position, tandem center directional control valve from the VM series with venturi return assist. It provides advance, hold and retract functions for single-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi) and flow capacity is 17 L/min (4.5 gal/min). The venturi return assist improves retraction speed of single-acting and load return cylinders by 3X. The pump mounting will retrofit on most Enerpac pumps, and user-adjustable relief valves allow the operator to easily set the working pressure. It is used in single-acting cylinder circuits where shorter retraction time is desired.

Features and Benefits

Venturi return assist improves retraction speed by 3X
Advance / hold / retract function for single-acting cylinders
700 bar (10,000 psi) maximum pressure, 17 L/min flow
Manual operation
Pump mounting retrofits on most Enerpac pumps
User-adjustable relief valves for easy pressure setting

Enerpac VM33VAC

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 3 Position, Tandem Center, Venturi Return Assist

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilitySingle-Acting

SeriesVM

Valve Operation TypeManual

Product LineIndustrial Tools, Workholding Tools

Weight5.7 lbs

Documents & CAD

For this product 2

Instruction ManualManually-Operated, Vacuum-Assisted Control Valves - VM33VAC, VM33MVACPDF·511 KB

Repair Parts SheetManually-Operated, Vacuum-Assisted Control Valves - VM33VAC, VM33MVACPDF·1.0 MB 4 languages· in one file

Series documents 1· shared by this product series

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

Alternative Names & Search Terms

VM33VACVM-33-VACVM 33 VACVM33 VACEnerpac VM33VACEnerpac VM-33VACVM33VAC valveVM33VAC directional control valveEnerpac VM seriesVM series directional control valveventuri return assist valveventuri directional control valvepump mounted venturi valvefast retraction hydraulic valvemanual 3-way 3-position valvetandem center venturi valvevalve to speed up single-acting cylinder retraction700 bar pump mounted valve
