How can I get a price quote for Enerpac VM32?

You can request a fast quote for Enerpac VM32 from Yılsa Engineering. Reference part number YLSGSDASOWSZDQX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VM32 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VM32 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VM32?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

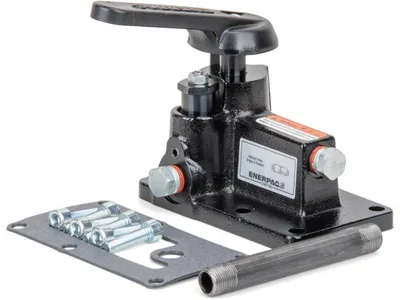

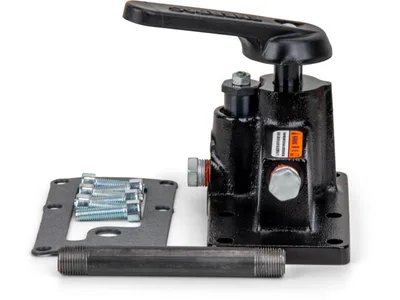

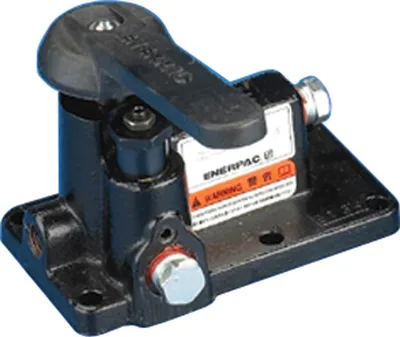

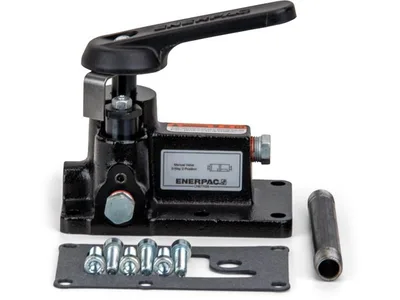

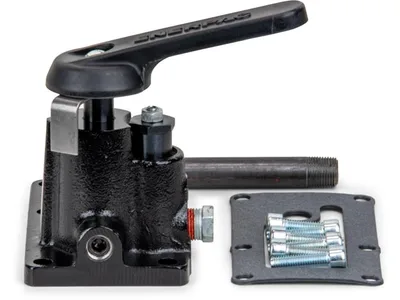

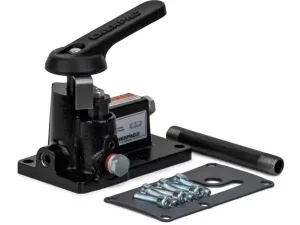

Enerpac VM32 3-Way Pump Mounted Directional Valve

Enerpac VM32; manual 3-way, 2-position pump mounted directional control valve, 700 bar (10,000 psi), 17 L/min (4.5 gal/min) flow, for single-acting cylinders.

EnerpacMFR # VM32SKU # YLSGSDASOWSZDQX

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 2-Position

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

The VM32 is a pump mounted, manually operated 3-way, 2-position directional control valve from the VM series. It is used for advance/retract operation of single-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min) and weight is 2.5 kg. The pump mounting will retrofit on most Enerpac pumps. User-adjustable relief valves allow the operator to easily set the working pressure. It is used in hydraulic circuits with single-acting cylinders and in clamping applications.

Features and Benefits

Advance/retract operation of single-acting cylinders
Manual operation, 3-way, 2-position design
700 bar (10,000 psi) maximum pressure, 17 L/min flow
Pump mounting retrofits on most Enerpac pumps
User-adjustable relief valves for easy pressure setting

Enerpac VM32

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 2-Position

Product TypeDirectional Control Valve

FunctionAdvance / Retract

Cylinder CompatibilitySingle-Acting

SeriesVM

Valve Operation TypeManual

Product LineIndustrial Tools, Workholding Tools

Weight2,5 kg (5.6 lbs)

Documents & CAD

For this product 3

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·English

Instruction ManualManual Control ValvePDF·1.5 MB 4 languages· in one file

Repair Parts SheetManual Valve - VM-32PDF·698 KB 4 languages· in one file

Series documents 17· shared by this product series

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.8 MB·中文

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Svenska

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Русский

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Română

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Português

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Polski

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Norsk

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Nederlands

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·13.0 MB·한국어

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Italiano

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·10.7 MB·日本語

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Français

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Suomi

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Español

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Čeština

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Deutsch

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

Alternative Names & Search Terms

VM32VM-32VM 32Enerpac VM32Enerpac VM-32VM32 valveVM32 directional control valveEnerpac VM seriesVM series directional control valvepump mounted directional control valvemanual 3-way 2-position valve3/2 manual hydraulic valvedirectional valve for single-acting cylinder17 L/min hydraulic valve700 bar pump mounted valvedirectional valve with adjustable relief valvesadvance retract hydraulic valve10,000 psi manual directional valve
