How can I get a price quote for Enerpac VEW11?

You can request a fast quote for Enerpac VEW11 from Yılsa Engineering. Reference part number YLS956XM4MOOM0N. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VEW11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VEW11 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VEW11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

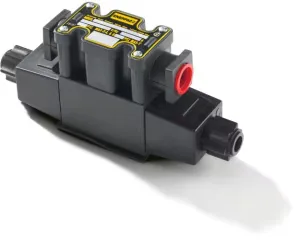

Enerpac VEW11 350 bar Solenoid Spool Valve

Enerpac VEW11; 350 bar (5,000 psi), 24 VDC solenoid-operated 4-way 2-position spool directional valve with D03 mounting pattern.

EnerpacMFR # VEW11SKU # YLS956XM4MOOM0N

Country of OriginUnited States

Maximum Operating Pressure350 bar (5,000 psi)

Valve Configuration4-Way, 2-Position

Flow Capacity2,1 l/min

Product TypeSolenoid Spool Valves

Pressure Range0 - 5,000 psi

Have questions?Chat on WhatsApp

About This Product

The VEW11 is a 4-way, 2-position solenoid spool valve from the Enerpac VE series. Spool-style solenoid valves are used in circuits that do not require zero leakage and have a D03 mounting pattern. Maximum operating pressure is 350 bar (5,000 psi), pressure range is 0 - 5,000 psi, and pressure drop is 9 bar (125 psi). Electrical supply is 24 VDC @ 1.32 A at 50/60 Hz. It is used in workholding and general hydraulic directional control circuits.

Features and Benefits

4-way, 2-position spool design
Suited to circuits that do not require zero leakage
D03 mounting pattern
350 bar (5,000 psi) maximum operating pressure
24 VDC solenoid operation

Enerpac VEW11

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Operating Pressure350 bar (5,000 psi)

Valve Configuration4-Way, 2-Position

Flow Capacity2,1 l/min

Product TypeSolenoid Spool Valves

Pressure Range0 - 5,000 psi

SeriesVE

Valve Operation TypeSolenoid

Max. Oil Flow8 gpm

Product LineWorkholding Tools

Pressure Drop9 bar (125 psi)

VoltageAt 50/60 Hz, 24 VDC @ 1,32 A

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualDO3 Solenoid ValvesPDF·295 KB·English

BrochureWorkholding Valves, EnglishPDF·1.8 MB
