How can I get a price quote for Enerpac VE43?

You can request a fast quote for Enerpac VE43 from Yılsa Engineering. Reference part number YLSMFGXK93C7IKZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VE43 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VE43 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VE43?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

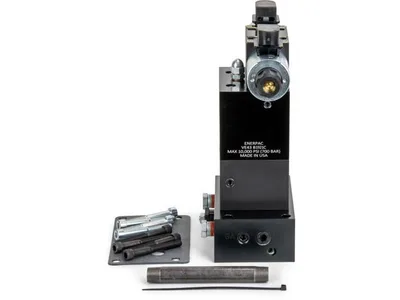

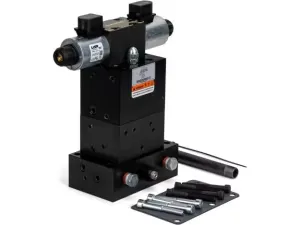

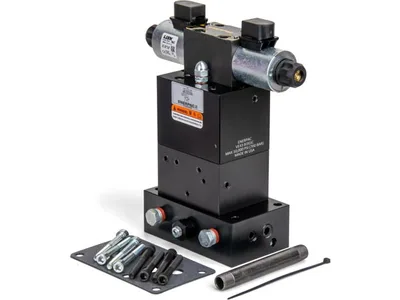

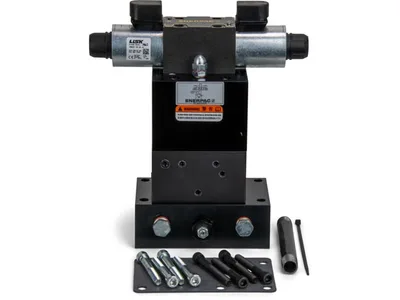

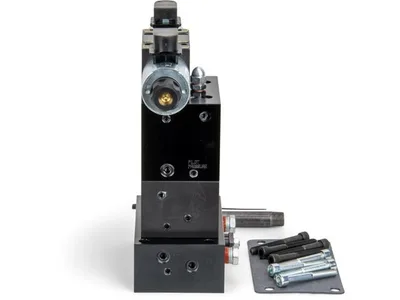

Enerpac VE43 700 bar Directional Valve

Enerpac VE43; 700 bar (10,000 psi), 17 L/min, 24 VDC solenoid-operated pump-mounted 4-way 3-position directional control valve for double-acting cylinders.

EnerpacMFR # VE43SKU # YLSMFGXK93C7IKZ

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Tandem Center

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

The VE43 is a pump-mounted, solenoid-operated 4-way, 3-position, tandem center directional control valve from the Enerpac VE series. It provides advance / hold / retract operation of double-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min), and the supply voltage is 24 VDC. It weighs 9.3 kg (20.3 lb) and is compatible with the ZCP3 pendant. It can be retrofitted to most Enerpac pumps and is used in pressing, lifting and workholding applications with double-acting cylinders.

Features and Benefits

Advance / hold / retract operation of double-acting cylinders
Solenoid operation, 24 VDC
Pump mounting retrofits most Enerpac pumps
User-adjustable relief valves for easy working pressure setting
700 bar (10,000 psi) maximum operating pressure

Enerpac VE43

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Tandem Center

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilityDouble-Acting

SeriesVE

Valve Operation TypeSolenoid

Product LineIndustrial Tools, Workholding Tools

Weight9,3 kg (20.3 lbs)

Voltage24 VCC

Documents & CAD

For this product 8

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·English

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Nederlands

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·13.0 MB·한국어

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·10.7 MB·日本語

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Français

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Suomi

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Español

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Čeština

Series documents 12· shared by this product series

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.8 MB·中文

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Svenska

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Русский

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Română

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Português

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Polski

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Norsk

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Italiano

Instruction ManualElectric Hydraulic Pumps, ZE2-Series and ZW2-SeriesPDF·11.5 MB·Deutsch

Instruction ManualControl ValvePDF·1.9 MB 4 languages· in one file

Repair Parts SheetElectrically Operated Control Valve - VE33, VE43, VE33-115, VE43-115PDF·6.8 MB 4 languages· in one file

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

VE43VE-43VE 43Enerpac VE43Enerpac VE-43VE43 valveVE43 directional control valveVE43 solenoid valveEnerpac VE seriesVE series valvepump mounted solenoid valve4-way 3-position solenoid valvedirectional valve for double-acting cylinders24 VDC solenoid hydraulic valve700 bar directional control valvetandem center hydraulic valveZCP3 compatible valve
